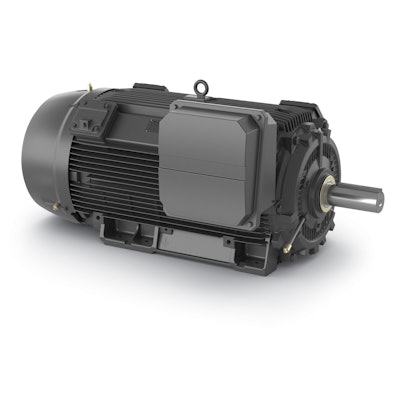

ABB has introduced the NEMA DP200 Crush+ severe-duty motor for crushers and other quarry, mining and aggregate applications. Engineered with the user in mind, Crush+ delivers high starting and breakdown torque alongside flexibility and design modularity.
Built upon the SD200 motor platform, its rugged and reliable design optimizes performance.
Features
- 125 to 600 hp heavy-duty, cast-iron frame construction available in NEMA 440 – 580 frame sizes
- High-strength 4140 steel shaft IP65 ingress protection and non-contact labyrinth seals on drive and non-drive end
- Flexible, oversized conduit box with F1, F2 or F3 positioning, 90° rotation, center or drive-end mounting options
- High starting and breakdown torque
- 4 and 6 poles
- 460V, 575V, 60Hz (custom 50Hz)
- Full Class H insulation
- Division 2 hazardous location Class I, Groups A, B, C, D Class II, Groups F and G Bearing RTD provisions ABB Ability Smart Sensor ready for condition monitoring
“ABB has designed and manufactured our DP200 Crush+ motor to meet or exceed our customers’ needs for energy efficiency and reliability,” said Oscar Palafox, global portfolio product manager, ABB NEMA Motors. “The modular design offers a high level of flexibility for our customers and makes it easy to upgrade or retrofit existing systems in the field or implement future equipment designs and requirements.”
In addition to the many standard design features, Crush+ allows for fitment of the ABB Ability Smart Sensor for digital powertrain condition monitoring in hazardous areas. ABB Ability converts traditional motors into smart, wirelessly connected devices, enabling users to monitor the health of their motors and to plan maintenance in advance.
The sensor’s enclosure withstands high vibration levels and provides protection from dust and water ingress. The ABB Ability Smart Sensor is certified for ATEX, IECEx and NEC500, making it compliant with strict requirements for equipment operating in explosive atmospheres.
