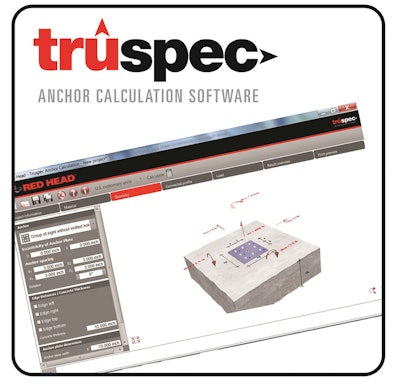

ITW Commercial Construction's anchor calculation software allows architects and engineers to design concrete anchoring connection within minutes to create anchor connections in accordance with ACI 318 Appendix D.
- Select the number of anchor points
- Model simultaneous moment forces in x-, y-, z-axis
- Model multiple edge and spacing distance configurations
- Calculate critical values for total strength design of anchor connections
- Optimize designs across multiple scenarios
- Real-time 3D graphics; color coded results; value displays in U.S. or metric units
- Predict mode of failure for anchor connections
- Recommend most efficient anchoring method
- Recommend most efficient anchor size
- Specify anchoring methods to achieve a desired failure mode
- Includes product datasheet, photos, ICC-ES evaluation reports and specification packages
- Generates printed or PDF versions of anchor connection data, detailed calculations for anchor connection design, test reports and specification packages
