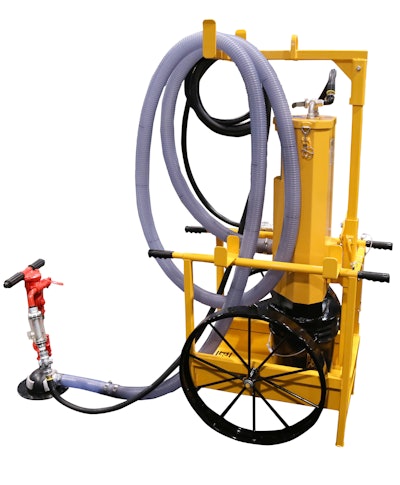

E-Z Drill Dust Collection Cart for Handheld Drills

34d3f9c4
Ez Drill Dust Coll Cart 594ad7dfc28c0

The 215-lb;. Dust Collection Cart uses the same technology as E-Z Drill’s concrete dowel drill Dust Collection System but can be used with handheld drills.

  • Effectively collects dust directly from drilled holes and stores it in a collector
  • Uses the same air compressor as the drill, requiring an additional 40 cfm for operation
  • Includes 20 ft. of 2-in. dust collection hose and a shroud that goes around the bit to ensure dust is collected at the point of drilling
  • Two 600mm filters effectively trap dust particles
  • Drill can be set on the cart for easy transport
  • Meets all engineering and control methods outlined in OSHA Table 1 requirements for crystalline silica exposure



Fill out the form below to request more information about E-Z Drill Dust Collection Cart for Handheld Drills
