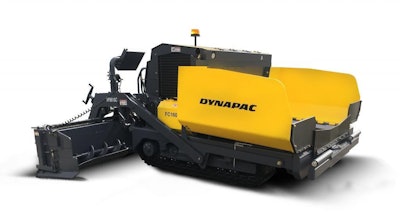

DYNAPAC FC1600C TRACKED PAVERS
Basic paving width: 103 in
Max. paving width: 216 ft
Max. layer thickn.:
Theor placement cap.: 600 t/h
Masses
Mass (tractor) 14,000 lbsPaver weight (incl. standard screed) 18,500 lbs

Traction
Paving speed 140 fpmTransport speed 3 mph

Engine
Manufacturer/Model Cummins QSB 3.3Emissions according to EPA T3/EU3ARated power, SAE J1995 99 hp @ 1,400 rpmElectrical system 12VFuel tank capacity 22 galEngine alternator capacity 120 AmpsHeating generator capacity 16 kW, 240V 1 phase

Conveyor
Conveyor type Dual slat conveyorConveyor width 24 inConveyor control On/Off

EQUIPMENT (STANDARD AND OPTIONS)+
StandardLED Work Lights, Backup Alarm & Rotating Beacon, Reversibe auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, Hydraulic Tow Point, Screed Power Crown, Screed Power Match height, FleetLink Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics, Vandal package

Optional
Screed Ext. Power slope control, Road Crew Kit, 3 Man operation, Levelling System, Averaging Ski beam, Cut-Off plates, Screed Extension, Heated end gate, Truck Hitch, Umbrella
