RP175e

D423afd0

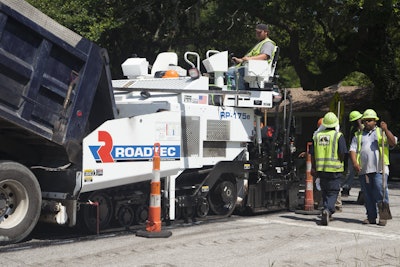

ROADTEC RP-175 HIGHWAY CLASS ASPHALT PAVER
OVERVIEW
THE RP-175 IS A POWERFUL, COMPACT 8' (2.5M) WIDE RUBBER TRACK ASPHALT PAVER DESIGNED TO WORK IN ALL TYPES OF SUB-GRADES AND PAVING APPLICATIONS.

Full counter-rotate ability and track flotation allow the RP-175 to maneuver and pave in tight areas without sacrificing tractive effort or pushing power. The RP-175 features our exclusive anti-segregation design which includes a wide feed tunnel and large augers. Operator stations hydraulically swing out, allowing the operator to see down the side of the machine. Controls with ergonomic design of switch placements are on the armrest for operator comfort even through long shifts.

SPECIFICATIONS
Engine Specifications
Engine MFG CumminsModel QSB 6.7Max Power 173 hp @ 2,200 rpmNumber of Cylinders 6Electrical System 24v

Weight & Dimensions Specifications
Shipping Length (Tractor Only) 15' 7Shipping Length with Rear Mount Screed 21'-9 1/16Shipping Width 8'-10Shipping Height 9'-11Tractor Operating Width 10'-1Wheelbase 9'-2Weight (Tractor Only) 32,500 lbsWeight with S-8 Screed 37,800 lbsWeight with EZ-IV-8 Screed 38,850 lbs

Service Capacities Specifications
Fuel Tank Capacity 81 galHydraulic Tank 66 galCooling System 8.75 galDEF Tank Capacity 5 gal

Drive Specifications
Final Drive 2 speedNumber of Drive Pumps 2Number of Drive Motors 2Paving Speed 0-200 fpmTravel Speed 0-7.5 mphRear tire size 16.00-24Track Width 14

Feed System Specifications
Hopper Width 10 1Hopper Capacity 10 tonsFeed Control Sonic and Flow GatesAuger Diameter 16Distance Between Augers and Back Wall 1.5Minimum Auger Height 2Hydraulic Tunnel Extensions Optional
