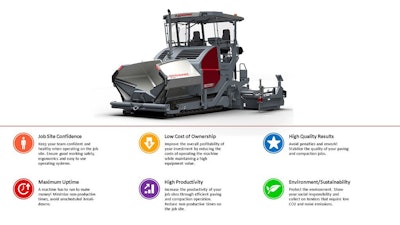

DYNAPAC SD2550CS
Basic paving width: 8.37 ftMax. paving width: 45.93 ftMax. layer thickn.: 14.17 inTheor placement cap.: 1,100 t/hMassesTractor weight (incl. standard screed) 20 t

Traction
Maximum paving speed 330,710 fpmTransport speed 218.72 fpm

Engine
Manufacturer/Model Cummins QSB6.7-C260Emissions according to EU Stage IIIARated power, SAE J1995 194 kW @ 2200 rpmElectrical system 24 VFuel tank capacity 85 gal

Alternative Engine
Manufacturer/Model Cummins QSB6.7-C260Emissions according to EU Stage V / US EPA t4fRated power, SAE J1995 194 kW @ 2200 rpmDEF tank capacity 9.78 galElectrical system 24 VFuel tank capacity 93.26 gal

Conveyor
Conveyor type Dual bar feederConveyor control Automatic with limit switchesConveyor width 2x 2.15 ft

Intuitive PaveManager 2.0 user interfaceIntegrated advanced leveling solutionsBig hopper volumePerfect overview with slidable cabinIncreased traction due to longer tracks
