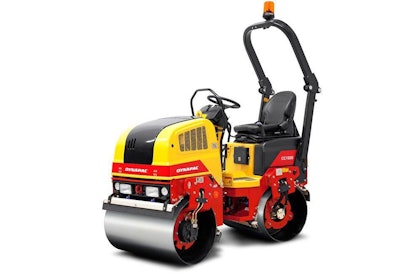

CC1000
The CC1000 is a member of Dynapac's small asphalt roller family. With a drum width of 1000 mm it's primarily used for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas. The large drum diameter and drive motors connected in series contributes to excellent accessibility and hill-climbing capacity. Propulsion and vibration naturally come as standard on both drums.
Operating Mass: 1685 kgSLL (front/rear): 7.9/ 8.9 kg/cm Compaction width: 1000 mm
TECHNICAL DATA+
Masses
Max. operating mass 1750 kg Operating mass (incl. ROPS) 1685 kg Module mass (front/rear) 790 kg/ 895 kg
Traction
Speed range (Dual/TC/AS) 0-9 Vertical oscillation ±13° Max. theoretical gradeability %
Compaction
Centrifugal force 17 kN Nominal amplitude 0.4 mm Static linear load (front/rear) 7.9/ 8.9 kg/cm Vibration frequency 70 Hz Water tank 110 l
Engine
Manufacturer/Model Perkins 403D-11 Type Water cooled diesel Rated power, SAE J1995 17 kW (23.5 hp ) @ 2600 rpm Fuel tank capacity 23 l Alternative Engine Manufacturer/Model Hydraulic system Driving Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement. Vibration Gear pump/motors with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe brake in both drums. OPERATIONS & MAINTENANCE MANUALS+
FLUIDS+
DRUM OIL Type of fluid Volume Additional info Dynapac Drum Oil 1000 4,5 l P/N
5 l can 4812156456 ENGINE Type of fluid Volume Additional info Dynapac engine Oil 200 5,1 l P/N 5 l can 5580020624 20 l can 5501522700 HYDRAULIC OIL TANK Type of fluid Volume Additional info Dynapac Hydraulic 300 12 l P/N 20 l can 9106230330 209 l drum 9106230331 SERVICE KITS+ DRUM ROTATION KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700945711 ECCENTRIC SHAFT KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700945710 SCRAPER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700940673 SERVICE KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812160159 Start up kit (CC1000 s/n 10000360x0A012890-) SERVICE KIT , 1000H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700940210 Compaction Double drum vibratory rollers 4812160151 (CC1000 s/n 10000360x0A012890-)No. oil Compaction Double drum vibratory rollers 4812160152 (CC1000 s/n 10000360x0A012890-) Inc. oil SERVICE KIT , 250H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812160397 (CC1000 s/n 10000360x0A012890-)No. oil SERVICE KIT , 500H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700940209 Compaction Double drum vibratory rollers 4812160098 (CC1000 s/n 10000360x0A012890-)No. oil Compaction Double drum vibratory rollers 4812160099 (CC1000 s/n 10000360x0A012890-) Inc. oil SERVICE KIT , 50H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700940208 Compaction Double drum vibratory rollers 4812160096 (CC1000 s/n 10000360x0A012890-)No. oil Compaction Double drum vibratory rollers 4812160097 (CC1000 s/n 10000360x0A012890-) Inc. oil SERVICE KIT , 750H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812160397 (CC1000 s/n 10000360x0A012890-)No. oil SHOCK ABSORBER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700945552 SLOW MOVING VEHICLE (SMV) SIGN KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700391951 SMV (SLOW MOVING VEHICLE) SIGN FOR STD TANK SPRINKLER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812161290 200 pieces. Compaction Double drum vibratory rollers 4812161288 50 pieces. Compaction Double drum vibratory rollers 4812161289 100 pieces. STEERING HITCH KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700945928 SPARE PARTS MANUALS+ SCHEMATICS+ Eager to see the schematics of CC1000? Please Log in or Register to MyDynapac to get access.
