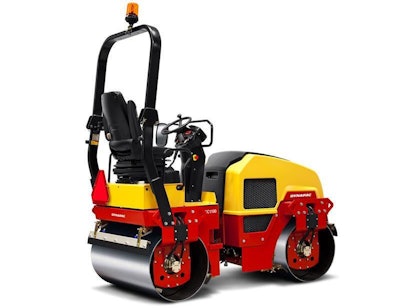

CC1100
Operating Mass: 2350 kgSLL (front/rear): 10.6/ 11.4 kg/cm Compaction width: 1070 mm
TECHNICAL DATA+
Masses
Max. operating mass 2460 kg Operating mass (incl. ROPS) 2350 kg Module mass (front/rear) 1130 kg/ 1220 kg
Traction
Speed range (Dual/TC/AS) 0-10 km/h Vertical oscillation ±10° Max. theoretical gradeability 50 %
Compaction
Centrifugal force 23 kN Nominal amplitude 0.5 mm Static linear load (front/rear) 10.6/ 11.4 kg/cm Vibration frequency 57 Hz Water tank 160 l
Engine
Manufacturer/Model Kubota D1703-M Type Water cooled diesel engine Rated power, SAE J1995 26 kW (35 hp ) @ 2800 rpm Fuel tank capacity 50 l Alternative Engine Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement. Radial piston motors (2) with constant displacement. Vibration Gear pump/motors with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake Failsafe multidisc brake in both drums. OPERATIONS & MAINTENANCE MANUALS+ FLUIDS+ DRUM OIL Type of fluid Volume Additional info Dynapac Gear Oil 200 4 l 5 l can 4812008274 20 l can 4812008275 209 l drum 4812008276
ENGINE
Type of fluid Volume Additional info Dynapac Engine Oil 200 7,2 l 5 liter can PN 4812161855 20 liter can PN 4812161856 209 liter drum PN 4812161857
HYDRAULIC OIL TANK
Type of fluid Volume Additional info Dynapac Hydraulic 300 45 l 5 liter can PN 4812161867 20 liter can PN 4812161868 209 liter drum PN 4812161869
SERVICE KITS+
DRIVING LIGHTS KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812115247 DRUM ROTATION KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938892 DUAL F/R CONTROL KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812115152 DUAL F/R CONTROL ECCENTRIC SHAFT KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938908 SCRAPER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938913 Compaction Double drum vibratory rollers 4812159962 SERVICE KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812159570 Start up kit SERVICE KIT , 1000H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156267 No. Oil Compaction Double drum vibratory rollers 4812159566 Inc. Oil SERVICE KIT , 250H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156288 No. Oil Compaction Double drum vibratory rollers 4812159564 Inc. Oil SERVICE KIT , 500H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156266 No. Oil Compaction Double drum vibratory rollers 4812159565 Inc. Oil SERVICE KIT , 50H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156265 No. Oil
Compaction Double drum vibratory rollers 4812159563 Inc. Oil SERVICE KIT , 750H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156288 No. Oil Compaction Double drum vibratory rollers 4812159564 Inc. Oil SHOCK ABSORBER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938885 SPRINKLER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700940594 Compaction Double drum vibratory rollers 4812161288 50 pieces. Compaction Double drum vibratory rollers 4812161289 100 pieces. Compaction Double drum vibratory rollers 4812161290 200 pieces. STEERING HITCH KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938575 SPARE PARTS MANUALS+ EQUIPMENT (STANDARD AND OPTIONS)+ SCHEMATICS+ Eager to see the schematics of CC1100? Please Log in or Register to MyDynapac to get access.
