CC1100C

9a368b13
Ab56c18b

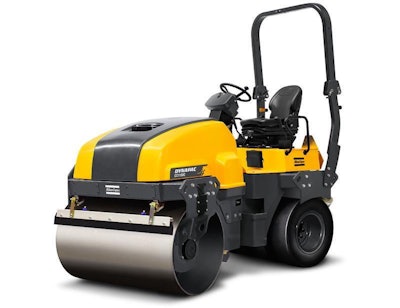

DYNAPAC CC1100C
Operating Mass: 2300 kg
Static linear load: 10.6 kg/cm
Compaction width: N/A
DYNAPAC CC1100C COMBI ROLLERS 0MY COMPARISON PICTURES DIMENSIONS

TECHNICAL DATA+
Masses
Max. operating mass 2440 kg Operating mass (incl. ROPS) 2300 kg Module mass (front/rear) 1130 kg/ 1170 kg

Traction
Speed range 0-9,5 km/h Max. theoretical gradeability 68 %

Compaction
Wheel load 290 (kg/wheel) Tyre type (smooth) 640x240-15 Centrifugal force 29 kN Nominal amplitude 0.5 mm Static linear load 10.6 kg/cm Vibration frequency 63 Hz Water tank 160 l Emulsion tank 30 l

Engine
Manufacturer/Model Kubota D1703-M (T4i) Type Water cooled diesel engine Rated power, SAE J1995 26 kW (35 hp ) @ 2800 rpm Fuel tank capacity 50 l Alternative Engine Rated power [engine 2, rpm] rpm Hydraulic system Driving Axial piston pump with variable displacement. Radial piston motors (3) with constant displacement. Vibration Gear pump/motors with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc on drum and wheel motors.

OPERATIONS & MAINTENANCE MANUALS+
SERVICE KITS+
BACK UP ALARM KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115257 BACK UP ALARM ROTATING BEACON KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115254 ROTATING BEACON WHEN ROPS SEAT BELT KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115298 SEAT BELT 2 FOR ROPS Compaction Combi rollers 4700391656 SMV (SLOW MOVING VEHICLE) SIGN SPRING LOADED SCRAPERS KIT Category Subcategory P/N Additional info Compaction Combi rollers 4700376882 SPRING LOADED SCRAPERS (CC1200) Compaction Combi rollers 4700376891 SPRING LOADED SCRAPERS (CC1200C) SPARE PARTS MANUALS+ EQUIPMENT (STANDARD AND OPTIONS)+ Standard Backup alarm, Working lights

Optional
3” seatbelt, Biodegradable hydraulic fluid, Cert. Fire protection (SBF 127), Decal risk location (GOST), Driving lights (right and left handed). Dual forward/reverse control, Fire extinguisher, Flow divider, Foot rest, Hearing protectors, Licence plate light, Rear view mirror (traffic view), Rotating beacon (ignition controlled), Service kit 50/500/1000H, Side direction lights (driving lights required), Slide lux seat, Slow moving vehicle sign, Special color (one or two), Spring loaded scrapers, Tool set, Towing eyelet, Water tank cover (lockable)

COMPACTION DATA+
SCHEMATICS+
Eager to see the schematics of Dynapac CC1100C? Please Log in or Register to MyDynapac to get access.

Operating Mass: 2300 kgStatic linear load: 10.6 kg/cm
Compaction width: N/A
DYNAPAC CC1100C COMBI ROLLERS 0MY COMPARISON PICTURES DIMENSIONS

TECHNICAL DATA+
Masses
Max. operating mass 2440 kg Operating mass (incl. ROPS) 2300 kg Module mass (front/rear) 1130 kg/ 1170 kg

Traction
Speed range 0-9,5 km/h Max. theoretical gradeability 68 %

Compaction
Wheel load 290 (kg/wheel) Tyre type (smooth) 640x240-15 Centrifugal force 29 kN Nominal amplitude 0.5 mm Static linear load 10.6 kg/cm Vibration frequency 63 Hz Water tank 160 l Emulsion tank 30 l

Engine
Manufacturer/Model Kubota D1703-M (T4i) Type Water cooled diesel engine Rated power, SAE J1995 26 kW (35 hp ) @ 2800 rpm Fuel tank capacity 50 l Alternative Engine Rated power [engine 2, rpm] rpm Hydraulic system Driving Axial piston pump with variable displacement. Radial piston motors (3) with constant displacement. Vibration Gear pump/motors with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc on drum and wheel motors.

OPERATIONS & MAINTENANCE MANUALS+
SERVICE KITS+
BACK UP ALARM KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115257 BACK UP ALARM ROTATING BEACON KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115254 ROTATING BEACON WHEN ROPS SEAT BELT KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115298 SEAT BELT 2 FOR ROPS Compaction Combi rollers 4700391656 SMV (SLOW MOVING VEHICLE) SIGN SPRING LOADED SCRAPERS KIT Category Subcategory P/N Additional info Compaction Combi rollers 4700376882 SPRING LOADED SCRAPERS (CC1200) Compaction Combi rollers 4700376891 SPRING LOADED SCRAPERS (CC1200C) SPARE PARTS MANUALS+ EQUIPMENT (STANDARD AND OPTIONS)+ Standard Backup alarm, Working lights

Optional
3” seatbelt, Biodegradable hydraulic fluid, Cert. Fire protection (SBF 127), Decal risk location (GOST), Driving lights (right and left handed). Dual forward/reverse control, Fire extinguisher, Flow divider, Foot rest, Hearing protectors, Licence plate light, Rear view mirror (traffic view), Rotating beacon (ignition controlled), Service kit 50/500/1000H, Side direction lights (driving lights required), Slide lux seat, Slow moving vehicle sign, Special color (one or two), Spring loaded scrapers, Tool set, Towing eyelet, Water tank cover (lockable)

COMPACTION DATA+
SCHEMATICS+
Eager to see the schematics of Dynapac CC1100C? Please Log in or Register to MyDynapac to get access.

Radial piston motors (3) with constant displacement. Vibration Gear pump/motors with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc on drum and wheel motors.

OPERATIONS & MAINTENANCE MANUALS+
SERVICE KITS+
BACK UP ALARM KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115257 BACK UP ALARM ROTATING BEACON KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115254 ROTATING BEACON WHEN ROPS SEAT BELT KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115298 SEAT BELT 2 FOR ROPS Compaction Combi rollers 4700391656 SMV (SLOW MOVING VEHICLE) SIGN SPRING LOADED SCRAPERS KIT Category Subcategory P/N Additional info Compaction Combi rollers 4700376882 SPRING LOADED SCRAPERS (CC1200) Compaction Combi rollers 4700376891 SPRING LOADED SCRAPERS (CC1200C) SPARE PARTS MANUALS+ EQUIPMENT (STANDARD AND OPTIONS)+ Standard Backup alarm, Working lights

Optional
3” seatbelt, Biodegradable hydraulic fluid, Cert. Fire protection (SBF 127), Decal risk location (GOST), Driving lights (right and left handed). Dual forward/reverse control, Fire extinguisher, Flow divider, Foot rest, Hearing protectors, Licence plate light, Rear view mirror (traffic view), Rotating beacon (ignition controlled), Service kit 50/500/1000H, Side direction lights (driving lights required), Slide lux seat, Slow moving vehicle sign, Special color (one or two), Spring loaded scrapers, Tool set, Towing eyelet, Water tank cover (lockable)

COMPACTION DATA+
SCHEMATICS+
Eager to see the schematics of Dynapac CC1100C? Please Log in or Register to MyDynapac to get access.

Fill out the form below to request more information about CC1100C
