CC1300

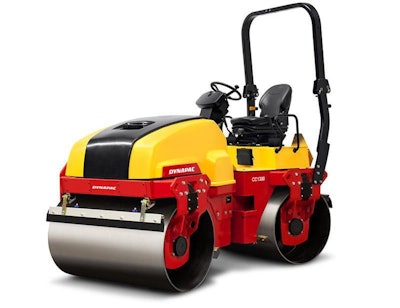

Operating Mass: 3900 kgSLL (front/rear): 14.5/ 15.4 kg/cm Compaction width: 1300 mmCC1300
DOUBLE DRUM VIBRATORY ROLLERS
0MY COMPARISON PICTURES DIMENSIONS
Masses
Max. operating mass 4030 kg Operating mass (incl. ROPS) 3900 kg Module mass (front/rear) 1900 kg/ 2000 kg
Traction
Speed range 0-10 km/h Vertical oscillation ±10° Max. theoretical gradeability 41 %
Compaction
Centrifugal force 33 kN Nominal amplitude 0.5 mm Static linear load (front/rear) 14.5/ 15.4 kg/cm Vibration frequency 52 Hz Water tank 200 l
Engine
Manufacturer/Model Kubota V2203-M (IIIA) Type Water cooled diesel engine Rated power, SAE J1995 33 kW (44 hp ) @ 2600 rpm Fuel tank capacity 50 l Alternative Engine Manufacturer/Model Alternative Engine Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement. Radial piston motors (2) with constant displacement. Vibration Gear pump/motors with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc brake in both drums.
OPERATIONS & MAINTENANCE MANUALS+
FLUIDS+
DRUM OIL Type of fluid Volume Additional info Dynapac Gear Oil 200 6 l P/N 5 l can 4812008274 20 l can 4812008275 209 l drum 4812008276
ENGINE
Type of fluid Volume Additional info Dynapac engine Oil 200 9,5 l P/N 20 l can 5580020624 209 l drum 5501522700
HYDRAULIC OIL TANK
Type of fluid Volume Additional info Dynapac Hydraulic 300 45 l P/N 20 l can 9106230330 209 l drum 9106230331
SERVICE KITS+
DRIVING LIGHTS KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812115247 DRUM ROTATION KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938893 DUAL F/R CONTROL KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812115152 DUAL F/R CONTROL ECCENTRIC SHAFT KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938909 SCRAPER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938914 Compaction Double drum vibratory rollers 4700938915 (12mm) SERVICE KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812159668 Start up kit Compaction Double drum vibratory rollers 4812160468 Start up kit CC1300 T4 s/n 10000374xFA0*****- SERVICE KIT , 1000H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156268 (No. Oil) Compaction Double drum vibratory rollers 4812159595 (Inc. Oil) Compaction Double drum vibratory rollers 4812160466 CC1300 T4 s/n 10000374xFA0*****- (No. Oil) Compaction Double drum vibratory rollers 4812160467 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil) SERVICE KIT , 250H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156288 (No. Oil) Compaction Double drum vibratory rollers 4812159564 (Inc. Oil) Compaction Double drum vibratory rollers 4812160462 CC1300 T4 s/n 10000374xFA0*****- (No. Oil) Compaction Double drum vibratory rollers 4812160463 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil) SERVICE KIT , 500H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156266 (No. Oil) Compaction Double drum vibratory rollers 4812159565 (Inc. Oil) Compaction Double drum vibratory rollers 4812160464 CC1300 T4 s/n 10000374xFA0*****- (No. Oil) Compaction Double drum vibratory rollers 4812160465 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil) SERVICE KIT , 50H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156265 (No. Oil) Compaction Double drum vibratory rollers 4812159563 (Inc. Oil) Compaction Double drum vibratory rollers 4812160460 CC1300 T4 s/n 10000374xFA0*****- (No. Oil) Compaction Double drum vibratory rollers 4812160461 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil) SERVICE KIT , 750H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156288 (No. Oil) Compaction Double drum vibratory rollers 4812159564 (Inc. Oil) Compaction Double drum vibratory rollers 4812160462 CC1300 T4 s/n 10000374xFA0*****- (No. Oil) Compaction Double drum vibratory rollers 4812160463 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil) SHOCK ABSORBER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938887 Compaction Double drum vibratory rollers 4812160851 Drum SPRINKLER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700940594 Compaction Double drum vibratory rollers 4812161288 50 pieces. Compaction Double drum vibratory rollers 4812161289 100 pieces. Compaction Double drum vibratory rollers 4812161290 200 pieces. STEERING HITCH KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938575 SPARE PARTS MANUALS+ EQUIPMENT (STANDARD AND OPTIONS)+ SCHEMATICS+ Eager to see the schematics of CC1300? Please Log in or Register to MyDynapac to get access.
