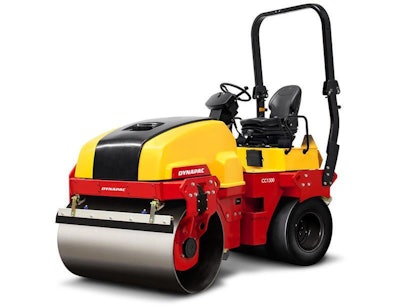

CC1300C
Operating Mass: 3750 kg
Static linear load: 14.8 kg/cm
Compaction width: N/AOperating Mass: 3750 kg
TECHNICAL DATA+
Masses
Max. operating mass 3900 kg Operating mass (incl. ROPS) 3750 kg Module mass (front/rear) 1930 kg/ 1820 kg
Traction
Speed range 0-10 km/h Max. theoretical gradeability 37 %
Compaction
Wheel load 455 (kg/wheel) Tyre type (smooth) 7.50-16 Centrifugal force 33 kN Nominal amplitude 0.5 mm Static linear load 14.8 kg/cm Vibration frequency 52 Hz Water tank 200 l Emulsion tank 40 l
Engine
Manufacturer/Model Kubota V2203-M Type Water cooled diesel engine Rated power, SAE J1995 34 kW (45 hp ) @ 2600 rpm Fuel tank capacity 50 l Alternative Engine Rated power [engine 2, rpm] rpm
Hydraulic system
Driving Axial piston pump with variable displacement. Radial piston motors (3) with constant displacement. Vibration Gear pump/motors with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc on drum and wheel motors.
OPERATIONS & MAINTENANCE MANUALS+
SERVICE KITS+
BACK UP ALARM KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115257 BACK UP ALARM DRUM ROTATION KIT Category Subcategory P/N Additional info Compaction Combi rollers 4700938893 ECCENTRIC SHAFT KIT Category Subcategory P/N Additional info Compaction Combi rollers 4700938909 ROTATING BEACON KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115254 ROTATING BEACON WHEN ROPS SCRAPER KIT Category Subcategory P/N Additional info Compaction Combi rollers 4700938915 12mm SEAT BELT KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115298 SEAT BELT 2 FOR ROPS Compaction Combi rollers 4700391656 SMV (SLOW MOVING VEHICLE) SIGN SERVICE KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812159572 Start up kit SERVICE KIT , 1000H Category Subcategory P/N Additional info Compaction Combi rollers 4812156268 No Oil Compaction Combi rollers 4812159567 Inc. Oil SERVICE KIT , 250H Category Subcategory P/N Additional info Compaction Combi rollers 4812156288 No Oil Compaction Combi rollers 4812159564 Inc. Oil SERVICE KIT , 500H Category Subcategory P/N Additional info Compaction Combi rollers 4812156266 No Oil Compaction Combi rollers 4812159565 Inc. Oil SERVICE KIT , 50H Category Subcategory P/N Additional info Compaction Combi rollers 4812156265 No Oil Compaction Combi rollers 4812159563 Inc. Oil SERVICE KIT , 750H Category Subcategory P/N Additional info Compaction Combi rollers 4812156288 No Oil Compaction Combi rollers 4812159564 Inc. Oil SHOCK ABSORBER KIT Category Subcategory P/N Additional info Compaction Combi rollers 4700938887 Drum SPRING LOADED SCRAPERS KIT Category Subcategory P/N Additional info Compaction Combi rollers 4812115261 SPRING LOADED SCRAPERS (CC1300) Compaction Combi rollers 4812115263 SPRING LOADED SCRAPERS (CC1300C) SPRINKLER KIT Category Subcategory P/N Additional info Compaction Combi rollers 4700940594 STEERING HITCH KIT Category Subcategory P/N Additional info Compaction Combi rollers 4700938575 SPARE PARTS MANUALS+ EQUIPMENT (STANDARD AND OPTIONS)+ Standard Backup alarm, Working lights SCHEMATICS+ Eager to see the schematics of CC1300C? Please Log in or Register to MyDynapac to get access.
