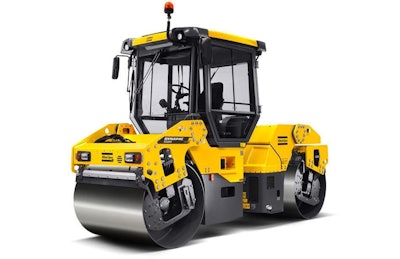

DYNAPAC CC2200
These tandem rollers are designed with efficiency in mind - application efficiency, operator efficiency, compaction control efficiency and service efficiency. Performance, visibility, operators comfort, compaction control and serviceability for the new CC line will appeal to owners, operators and service crews. The environmental benefits appeal to everyone. All models have high frequency vibration as standard. There is a number of features to the CC rollers to make servicing quick and easy, ensuring maximum uptime.
Operating Mass: 7600 kgSLL (front/rear): 25.3/ 25.3 kg/cm Compaction width: 1500 mm
FEATURES & BENEFITS+ Dynapac Dyn@Link Dyn@Link A tool to monitor and control their machine fleet efficiently and conveniently.
Dynapac Eco mode Eco mode Big fuel savings with ECO!
TECHNICAL DATA+
Masses
Max. operating mass 9000 kg Operating mass (incl. ROPS) 7600 kg Operating mass (incl. Cab) 7800 kg Module mass (front/rear) 3800 kg/ 3800 kg
Traction
Speed range 0 - 12 km/h Vertical oscillation ±7° Max. theoretical gradeability 42 %
Compaction
Centrifugal force (high/low amplitude) 78 kN/ 67 kN Nominal amplitude (high/low) 0.7 mm/ 0.2 mm Static linear load (front/rear) 25.3/ 25.3 kg/cm Vibration frequency (high/low amplitude) 48 Hz/ 67 Hz Water tank volume 750 l
Engine
Type Water cooled turbo Diesel Rated power, SAE J1995 Alternative Engine Manufacturer/Model Cummins QSB 3.3 IIIA/T3 Type Water cooled turbo Diesel Rated power, SAE J1995 74 kW (99 hp ) @ 2,200 U/Min. Alternative Engine Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement. Vibration Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc brake in both drums.
OPERATIONS & MAINTENANCE MANUALS+
FLUIDS+
DRUM GEAR Type of fluid Volume Additional info Dynapac Gear Oil 200 1,7 l P/N 5 l can 4812008274 20 l can 4812008275 209 l drum 4812008276
DRUM OIL
Type of fluid Volume Additional info Dynapac Drum Oil 1000 6,4 l P/N 5 l can 4812156456
ENGINE
Type of fluid Volume Additional info Dynapac Engine Oil 100 7 l for Cummins engine 8 l for Deutz engine P/N 5 l can 1915595300 20 l can 1915595400 209 l drum 1915595500
HYDRAULIC OIL TANK
Type of fluid Volume Additional info Dynapac Hydraulic 300 40 l P/N 20 l can 9106230330 209 l drum 9106230331
SERVICE KITS+
COMPACTION ANALYZER FOR ASPHALT (DCA-A) Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 470PP81066 DCA-A COMPACTION ANALYZER FOR ASPHALT ECCENTRIC SHAFT KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700945722 EDGE PRESS, JOINT CUTTER DISC Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 470PP81100 EDGE PRESS DEVICE, JOINT CUTTER DISC, 120 MM 4.7 INCH Compaction Double drum vibratory rollers 470PP81101 EDGE PRESS DEVICE, JOINT CUTTER DISC, 150 MM 5.9 INCH ROTATING BEACON KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 470PP81095 ROTATING BEACON SCRAPER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812155791 SERVICE KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812159673 (IIIB/T4i) Start up kit SERVICE KIT , 1000H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700950176 (IIIA/T3) Compaction Double drum vibratory rollers 4812159383 (IIIB/T4i) NO. Oil Compaction Double drum vibratory rollers 4812159385 (IIIB/T4i) Inc. Oil SERVICE KIT , 250H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700939076 (IIIA/T3) SERVICE KIT , 500H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700950175 (IIIA/T3) Compaction Double drum vibratory rollers 4812159381 (IIIB/T4i) NO. Oil Compaction Double drum vibratory rollers 4812159382 (IIIB/T4i) Inc. Oil SERVICE KIT , 50H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812159380 (IIIA/T3) Compaction Double drum vibratory rollers 4812159380 (IIIB/T4i) Inc. Oil SERVICE KIT , 750H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700939076 (IIIA/T3) SHOCK ABSORBER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812156382 Split Drum SPRINKLER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812155698 Compaction Double drum vibratory rollers 4812161288 50 pieces. Compaction Double drum vibratory rollers 4812161289 100 pieces. Compaction Double drum vibratory rollers 4812161290 200 pieces. TACHOGRAPH KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 470PP81083 TACHOGRAPH Compaction Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT WORKING LIGHTS KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 470PP81096 std H3 SPARE PARTS MANUALS+ COMPACTION DATA+ SCHEMATICS+ Eager to see the schematics of Dynapac CC2200? Please Log in or Register to MyDynapac to get access.
