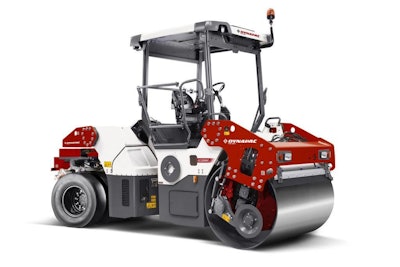

DYNAPAC CC2200C
Operating Mass: 7400 kg
Static linear load: 25.7 kg/cm
Compaction width: 1500 mm
DYNAPAC CC2200C COMBI ROLLERS 0MY COMPARISON PICTURESDIMENSIONS
TECHNICAL DATA+
Masses
Max. operating mass 8200 kg Operating mass (incl. ROPS) 7400 kg Module mass (front/rear) 3850 kg/ 3550 kg
Traction
Speed range 0-12 km/h Vertical oscillation ±7 Max. theoretical gradeability 49 %
Compaction
Wheel load 888 kg/wheel Centrifugal force (high/low amplitude) 78/ 67 kN Nominal amplitude (high/low) 0.70/ 0.30 mm Static linear load 25.7 kg/cm Vibration frequency (high/low amplitude) 48/ 67 Hz Water tank 750 l Emulsion tank 78 l
Engine
Manufacturer/Model Deutz TCD 3.6 HT T4f Type Water cooled turbo Diesel Rated power, SAE J1995 55 kW (74 hp) @ 2200 rpm Fuel tank capacity 130 l Alternative Engine Manufacturer/Model Cummins QSB 3.3 IIIA/T3 Type Water cooled turbo Diesel Rated power, SAE J1995 74 kW ((99 hp) @ 2200 rpm Fuel tank capacity 130 l Alternative Engine Manufacturer/Model Deutz TCD 3.6 HT StageV Type Water cooled turbo Diesel Rated power, SAE J1995 55 kW (74 hp) @ 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement. Axial piston motors (3) with variable displacement. Vibration Axial piston pump with variable displacement. Axial piston motor with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc brake in both drums.
