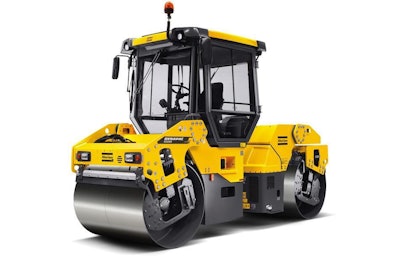

DYNAPAC CC2300
Operating Mass: 8500 kg
SLL (front/rear): 28.3/ 28.3 kg/cm
Compaction width: 1500 mm
DYNAPAC CC2300 DOUBLE DRUM VIBRATORY ROLLERS 0MY COMPARISON PICTURESDIMENSIONS
FEATURES & BENEFITS+
Dynapac Dyn@Link Dyn@Link A tool to monitor and control their machine fleet efficiently and conveniently. Dynapac Eco mode Eco mode Big fuel savings with ECO!
TECHNICAL DATA+
Masses
Max. operating mass 9400 kg Operating mass (incl. ROPS) 8500 kg Operating mass (incl. Cab) 8700 kg Module mass (front/rear) 4250 kg/ 4250 kg
Traction
Speed range 0 - 12 km/h Vertical oscillation ±7° Max. theoretical gradeability 39 %
Compaction
Split drums Yes Centrifugal force (high/low amplitude) 72 kN/ 59 kN Nominal amplitude (high/low) 0.5 mm/ 0.2 mm Static linear load (front/rear) 28.3/ 28.3 kg/cm Vibration frequency (high/low amplitude) 48 Hz/ 67 Hz Water tank volume 750 l
Engine
Manufacturer/Model Deutz TCD 3.6 IIIB/T4i Type Water cooled turbo Diesel Rated power, SAE J1995 75 kW (100 hp ) @ 2200 rpm Fuel tank capacity 130 l Alternative Engine Manufacturer/Model Cummins QSB 3.3 IIIA/T3 Type Water cooled turbo Diesel Rated power, SAE J1995 74 kW (99 hp ) @ 2200 rpm Alternative Engine Manufacturer/Model Hydraulic system Driving Axial piston pump with variable displacement Axial piston motors (4) with variable displacement Vibration Axial piston pumps (2) with variable displacement Axial piston motors (2) with constant dispacement Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc brake in both drums.
OPERATIONS & MAINTENANCE MANUALS+
FLUIDS+
DRUM GEAR Type of fluid Volume Additional info Dynapac Gear Oil 200 0,8 l P/N 5 l can 4812008274 20 l can 4812008275 209 l drum 4812008276
DRUM OIL
Type of fluid Volume Additional info Dynapac Drum Oil 1000 14 l P/N 5 l can 4812156456
ENGINE
Type of fluid Volume Additional info Dynapac Engine Oil 100 7 l for Cummins engine 8 l for Deutz engine P/N 5 l can 1615595300 20 l can 1615595400 209 l drum 1615595500
HYDRAULIC OIL TANK
Type of fluid Volume Additional info Dynapac Hydraulic 300 40 l P/N 20 l can 9106230330 209 l drum 9106230331
SERVICE KITS+
COMPACTION ANALYZER FOR ASPHALT (DCA-A) Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 470PP81066 DCA-A COMPACTION ANALYZER FOR ASPHALT DRUM ROTATION KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700938891 ECCENTRIC SHAFT KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812155792 ROTATING BEACON KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 470PP81095 ROTATING BEACON SCRAPER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700945908 SERVICE KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812159672 (IIIB/T4i) Start up kit SERVICE KIT , 1000H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700950176 (IIIA/T3) Compaction Double drum vibratory rollers 4812159383 (IIIB/T4i) No. Oil Compaction Double drum vibratory rollers 4812159384 (IIIB/T4i) Inc. Oil SERVICE KIT , 250H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700939076 (IIIA/T3) SERVICE KIT , 500H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700950175 (IIIA/T3) Compaction Double drum vibratory rollers 4812159381 (IIIB/T4i) No. Oil Compaction Double drum vibratory rollers 4812159382 (IIIB/T4i) Inc. Oil SERVICE KIT , 50H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812159352 (IIIA/T3) Compaction Double drum vibratory rollers 4812159352 (IIIB/T4i) Inc. Oil SERVICE KIT , 750H Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4700939076 (IIIA/T3) SHOCK ABSORBER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812155158 SPRINKLER KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 4812155698 Compaction Double drum vibratory rollers 4812161288 50 pieces. Compaction Double drum vibratory rollers 4812161289 100 pieces. Compaction Double drum vibratory rollers 4812161290 200 pieces. TACHOGRAPH KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 470PP81083 TACHOGRAPH Compaction Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT WORKING LIGHTS KIT Category Subcategory P/N Additional info Compaction Double drum vibratory rollers 470PP81096 std H3 SPARE PARTS MANUALS+ COMPACTION DATA+ SCHEMATICS+ Eager to see the schematics of Dynapac CC2300? Please Log in or Register to MyDynapac to get access.
