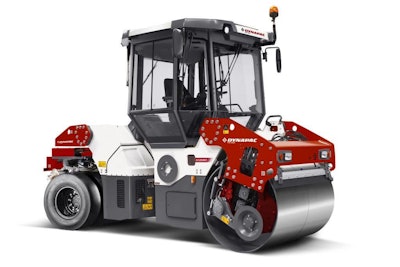

DYNAPAC CC2300C
Operating Mass: 7600 kg
Static linear load: 27.0 kg/cm
Compaction width: 1500 mm
DYNAPAC CC2300C COMBI ROLLERS 0MY COMPARISON PICTURES DIMENSIONS
TECHNICAL DATA+
Masses
Max. operating mass 8650 kg Operating mass (incl. ROPS) 7600 kg Module mass (front/rear) 4050 kg/ 3550 kg
Traction
Speed range (Dual/TC/AS) 0-12 km/h Vertical oscillation ±7 Max. theoretical gradeability 46 %
Compaction
Wheel load 888 (kg/wheel) Centrifugal force, at low amplitude 59 kN Centrifugal force (high/low amplitude) 72/ 59 kN Nominal amplitude (high/low) 0.50/ 0.20 mm Static linear load 27.0 kg/cm Vibration frequency (high/low amplitude) 48/67 Hz Water tank 750 l Emulsion tank 78 l Split drums Yes
Engine
Manufacturer/Model Deutz TCD 3.6 HT T4f Type Water cooled turbo Diesel Rated power, SAE J1995 55 kW (74 hp) @ 2200 rpm Fuel tank capacity 130 l Alternative Engine Manufacturer/Model Cummins QSB 3.3 IIIA/T3 Type Water cooled turbo Diesel Rated power, SAE J1995 74 kW (99 hp) @ 2200 rpm Alternative Engine Manufacturer/Model Deutz TCD 3.6 HT StageV Type Water cooled turbo Diesel Rated power, SAE J1995 55 kW (74 hp) @ 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement. Axial piston motors (4) with variable displacement. Vibration Axial piston pump with variable displacement. Axial piston motor with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc brake in both drums.
