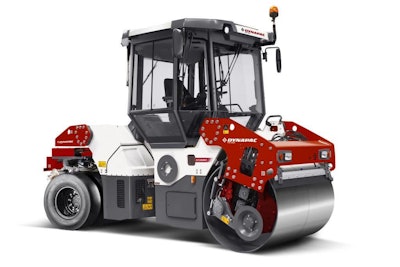

DYNAPAC CC3300C
Operating Mass: 17,400 lbs
Static linear load: 140 lbs/in
Compaction width: 68 in
TECHNICAL DATA+
Masses
Max. operating mass 19,600 lbs Operating mass (incl. ROPS) 17,400 lbs Module mass (front/rear) 9,500 lbs/ 7,900 lbs

Traction
Speed range 0-7,5 mph Vertical oscillation ±7 Max. theoretical gradeability 43 %

Compaction
Wheel load 1,980 (pounds/wheel) Centrifugal force (high/low amplitude) 18,440/ 16,190 lb Nominal amplitude (high/low) 0.02/ 0.01 in Static linear load 140 lbs/in Vibration frequency (high/low amplitude) 2,880/ 4,020 vpm Water tank 198 gal Emulsion tank 21 gal Split drums Yes

Engine
Manufacturer/Model Deutz TCD 3.6 HT T4f Type Water cooled turbo Diesel Rated power, SAE J1995 55 kW (74 hp) @ 2200 rpm Fuel tank capacity 34 gal Alternative Engine Manufacturer/Model Cummins QSB 3.3 IIIA/T3 Type Water cooled turbo Diesel Rated power, SAE J1995 74 kW (99 hp) @ 2200 rpm Alternative Engine Manufacturer/Model Deutz TCD 3.6 HT StageV Type Water cooled turbo Diesel Rated power, SAE J1995 55 kW (74 hp) @ 2200 rpm

Hydraulic system
Driving Axial piston pump with variable displacement. Axial piston motors (4) with variable displacement. Vibration Axial piston pump with variable displacement. Axial piston motor with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/Emergency brake Failsafe multidisc brake in both drums.

OPERATIONS & MAINTENANCE MANUALS+
SPARE PARTS MANUALS+
COMPACTION DATA+ SCHEMATICS+ Eager to see the schematics of Dynapac CC3300C? Please Log in or Register to MyDynapac to get access.
