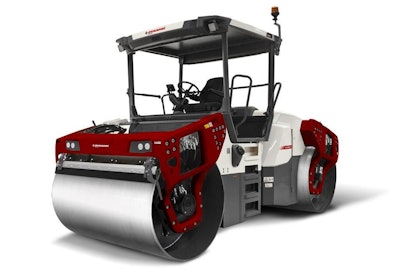

DYNAPAC CC4000 VI
Operating Mass: 9700 kg
SLL (front/rear): 28.9 kg/cm/28.9 kg/cm
Compaction width: 1680 mm
DYNAPAC CC4000 VI DOUBLE DRUM VIBRATORY ROLLERS 0MY COMPARISON EXPERIENCEPICTURESDIMENSIONS

TECHNICAL DATA+
Masses
Max. operating mass 12850 kg Operating mass (incl. ROPS) 9700 kg Operating mass (incl. Cab) 9850 kg Module mass (front/rear) 4850 kg/ 4850 kg

Traction
Speed range 0-12 km/h Vertical oscillation ±7° Max. theoretical gradeability 45 %

Compaction
Centrifugal force (high/low amplitude) 113 kN/74 kN Nominal amplitude (high/low) 0.8 mm/0.3 mm Static linear load (front/rear) 28.9 kg/cm/28.9 kg/cm Vibration frequency (high/low amplitude) 51 Hz/67 Hz Water tank volume 680 liters / (880 liters w. opt. watert.) Water tank volume (front drum steering) 740 liters

Engine
Manufacturer/Model Cummins F3.8 V Type Water cooled turbo diesel Rated power, SAE J1995 100 kW (135 hp ) @ 2200 rpm Fuel tank capacity 180 l DEF tank capacity 15 l Alternative Engine Manufacturer/Model Cummins QSF 3.8 IV/T4f Type Water cooled turbo diesel Rated power, SAE J1995 97 kW (130 hp ) @ 2200 rpm Fuel tank capacity 180 l DEF tank capacity 15 l Alternative Engine Manufacturer/Model Cummins QSF 3.8 IIIA/T3 Type Water cooled turbo diesel Rated power, SAE J1995 104 kW (140 hp) @ 2200 rpm Hydraulic system Driving Axial piston pump with variable displacem. Rad. piston motors(2) with variable displacem. Vibration Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc brake in both drums.

History
Production start (year) 2017 Production end (year) Note Generation VI of big asphalt rollers made a brand identity update in the late 2017 due to divestment from Atlas Copco and integration into FAYAT Construction Equipment division.
