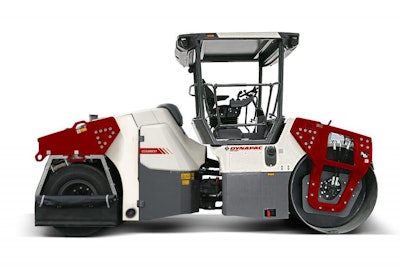

DYNAPAC CC4200C VI
Operating Mass: 9400 kg
Static linear load: 29.8 kg/cm
Compaction width: 1680 mm
DYNAPAC CC4200C VI COMBI ROLLERS 0MY COMPARISON PICTURES DIMENSIONS

TECHNICAL DATA+
Masses
Max. operating mass 11000 kg Operating mass (incl. ROPS) 9400 kg Module mass (front/rear) 5000 kg/ 4400 kg

Traction
Speed range 0-12 km/h Vertical oscillation ±7° Max. theoretical gradeability 41 %

Compaction
Wheel load 1100 kg/wheel Centrifugal force (high/low amplitude) 128/ 84 kN Nominal amplitude mm Nominal amplitude (high/low) 0.8/ 0.3 mm Static linear load 29.8 kg/cm Vibration frequency (high/low amplitude) 51/ 67 Hz Water tank volume 680 l Emulsion tank 200 l Water tank volume (front drum steering) 540 l

Engine
Manufacturer/Model Cummins F3.8 V Type Water cooled turbo diesel Rated power, SAE J1995 100 kW (135 hp ) @ 2200 rpm Fuel tank capacity 180 l DEF tank capacity 15 l Alternative Engine Manufacturer/Model Cummins QSF3.8 IV/T4f Type Water cooled turbo diesel Rated power, SAE J1995 97 kW (130 hp ) @ 2200 rpm Fuel tank capacity 180 l DEF tank capacity 15 l Alternative Engine Manufacturer/Model Cummins QSF 3.8 IIIA/T3 Type Water cooled turbo diesel Rated power, SAE J1995 104 kW (140 hp) @ 2200 rpm

Hydraulic system
Driving Axial piston pump with variable displacement. Radial piston motors (3) with variable displacement. Vibration Axial piston pump with variable displacement. Axial piston motor with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc brake in drum and wheel motors.

COMPACTION DATA+
ASPHALT COMPACTION SOIL COMPACTION LEVEL II Please Log in or Register to MyDynapac to get access.
