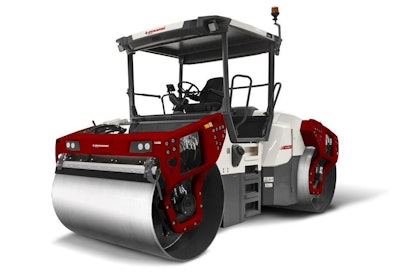

DYNAPAC CC4200 VI
Operating Mass: 10000 kg
SLL (front/rear): 29.8 kg/cm / 29.8 kg/cm
Compaction width: 1680mm
TECHNICAL DATA+
Masses
Max. operating mass 13150 kg Operating mass (incl. ROPS) 10000 kg Module mass (front/rear) 5000 kg/ 5000 kg
Traction
Speed range 0-12 km/h Vertical oscillation ±7° Max. theoretical gradeability 40 %
Compaction
Centrifugal force (high/low amplitude) 128 kN/84 kN Nominal amplitude (high/low) 0.8 mm / 0.3 mm Static linear load (front/rear) 29.8 kg/cm / 29.8 kg/cm Vibration frequency (high/low amplitude) 51 Hz/67 Hz Water tank volume 680 liters / (880 liters w. opt. watert.) Water tank volume (front drum steering) 740 liters
Engine
Manufacturer/Model Cummins F3.8 V Type Water cooled turbo diesel Rated power, SAE J1995 100 kW (135 hp ) @ 2200 rpm Fuel tank capacity 180 l DEF tank capacity 15 l Alternative Engine Manufacturer/Model Cummins QSF 3.8 IV/T4f Type Water cooled turbo diesel Rated power, SAE J1995 97 kW (130 hp ) @ 2200 rpm Fuel tank capacity 180 l DEF tank capacity 15 l Alternative Engine Manufacturer/Model Cummins QSF 3.8 IIIA/T3 Type Water cooled turbo diesel Rated power, SAE J1995 104 kW (140 hp ) @ 2200 rpm Hydraulic system Driving Axial piston pump with variable displacem. Rad. piston motors(2) with variable displacem. Vibration Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe multidisc brake in both drums.
