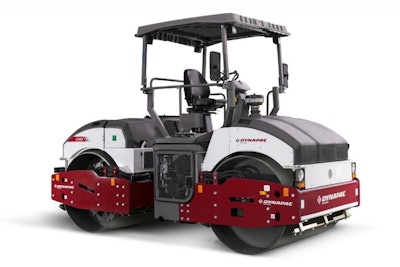

CC425

9a368b13
6cb9d0d7

Operating Mass: 9200 kgSLL (front/rear): 28.4/ 26.0 kg/cmCompaction width: 1690 mm

TECHNICAL DATA+
Masses
Max. operating mass 9650 kg

Operating mass (incl. Canopy) 9200 kg

Operating mass (incl. ROPS) kg

Module mass (front/rear) 4800 kg/ 4400 kg

Traction

Speed range 0-12 km/h

Vertical oscillation ±7°

Max. theoretical gradeability 39 %

Compaction

Centrifugal force (high/low amplitude) 130 kN/ 60 kN

Nominal amplitude (high/low) 0.9 mm/ 0.4 mm

Static linear load (front/rear) 28.4/ 26.0 kg/cm

Vibration frequency 36 Hz/ 54 Hz

Water tank 950 l

Engine

Manufacturer/Model Kirloskar 4R1040TC

Type Turbo charged, intercooler,

BSIII Diesel Engine

Rated power, SAE J1995 (76 hp ) @ 2200 rpm

Fuel tank capacity 250 l

Alternative Engine

Manufacturer/Model

Hydraulic system

Driving Axial piston pump with variable displacement.

Axial piston motor with variable displacement.

Vibration Axial piston pump with variable displacement.

Axial piston motor with fixed displacement.

Steering Gear pump with constant displacem.

Service brake Hydrostatic in forward and reverse lever.

Parking/

Emergency brake Failsafe multidisc brake.
