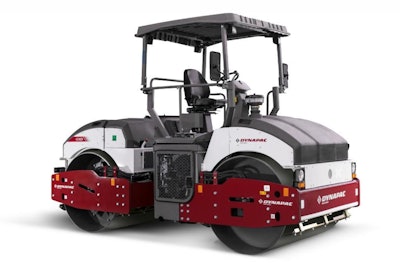

CC425 CEV IV

9a368b13
4742c32b

Masses
Max. operating mass 9600 kg

Operating mass (incl. Canopy) 9200 kg

Operating mass (incl. ROPS) kg

Module mass (front/rear) 4600 kg/ 4600 kg

Traction

Speed range 0-12 km/h (Working/Travel)

Vertical oscillation ±7°

Max. theoretical gradeability 39 %

Compaction

Centrifugal force (high/low amplitude) 130 kN/ 60 kN

Nominal amplitude (high/low) 0.9 mm/ 0.4 mm

Static linear load (front/rear) 27.2/ 27.2 kg/cm

Vibration frequency 36 Hz/ 54 Hz

Water tank 800 l

Engine

Manufacturer/Model Kirloskar 4R1190NA

Type Naturally aspirated CEV-IV Diesel engine

Rated power, SAE J1995 (74.5 hp ) @ 2200 rpm

Fuel tank capacity 180 l

Alternative Engine

Manufacturer/Model

Hydraulic system

Driving Axial piston pump with variable displacement. Axial piston motor with variable displacement.

Vibration Axial piston pump with variable displacement. Axial piston motor with fixed displacement.

Steering Gear pump with constant displacement.

Service brake Hydrostatic in forward and reverse lever.

Parking/

Emergency brake Failsafe multidisc brake.
