CC5200C VI

9a368b13
Dc810521

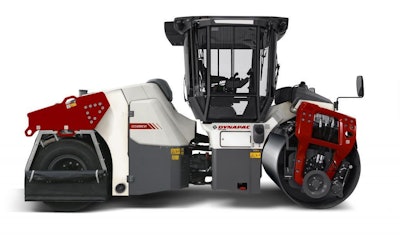

DYNAPAC CC5200C VI
Operating Mass: 22,700 lbs
Static linear load: 170 lbs/in
Compaction width: 77 in
DYNAPAC CC5200C VI COMBI ROLLERS 0MY COMPARISON PICTURESDIMENSIONS

TECHNICAL DATA+
Masses
Max. operating mass 25,800 lbs Operating mass (incl. ROPS) 22,700 lbs Module mass (front/rear) 13,000 lbs/ 9,700 lbs

Traction
Speed range 0-7.5 mph Vertical oscillation ±7° Max. theoretical gradeability 35 %

Compaction
Wheel load 2,425 lbs/wheel Centrifugal force (high/low amplitude) 32,370/ 20,910 lb Nominal amplitude in Nominal amplitude (high/low) 0.031/ 0.012 in Static linear load 170 lbs/in Vibration frequency (high/low amplitude) 3,060/ 4,020 vpm Water tank 224 gal Emulsion tank 53 gal Water tank (front drum steering) 174 gal

Engine
Manufacturer/Model Cummins F3.8 V Type Water cooled turbo diesel Rated power, SAE J1995 135 hp @ 2,200 rpm Fuel tank capacity 48 gal DEF tank capacity 4 gal Alternative Engine Manufacturer/Model Cummins QSF3.8 IV/T4f Type Water cooled turbo diesel Rated power [engine 2, rpm] rpm Rated power, SAE J1995 97 kW (130 hp ) @ 2200 rpm Fuel tank capacity 48 gal DEF tank capacity 3.96 gal Alternative Engine Manufacturer/Model Cummins QSF 3.8 IIIA/T3 Type Water cooled turbo diesel Rated power, SAE J1995 104 kW (140 hp) @ 2200 rpm Hydraulic system Driving Axial piston pump with variable displacement. Radial piston motors (3) with variable displacement. Vibration Axial piston pump with variable displacement. Axial piston motor with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/Emergency brake Failsafe multidisc brake in drum and wheel motors.

COMPACTION DATA+
ASPHALT COMPACTION
SOIL COMPACTION
LEVEL II
