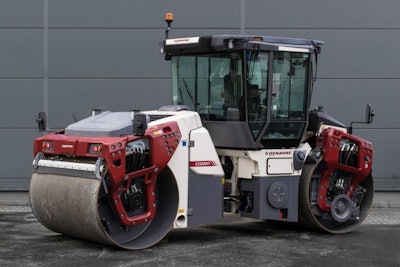

DYNAPAC CC5200 VI
Operating Mass: 26,000 lbs
SLL (front/rear): 170 pli/170 pli
Compaction width: 77 in
DYNAPAC CC5200 VI DOUBLE DRUM VIBRATORY ROLLERS 0MY COMPARISON EXPERIENCEPICTURESDIMENSIONS

TECHNICAL DATA+
Masses
Max. operating mass 32,800 lbs Operating mass (incl. ROPS) 26,000 lbs Module mass (front/rear) 13,000 lbs/ 13,000 lbs

Traction
Speed range 0-7.5 mph Vertical oscillation ±7° Max. theoretical gradeability 34 %

Compaction
Centrifugal force (high/low amplitude) 32,370 lb/20,910 lb Nominal amplitude (high/low) 0.031 in/0.012 in Static linear load (front/rear) 170 pli/170 pli Vibration frequency (high/low amplitude) 3,060 vpm/4,020 vpm Water tank 224 gal/ (277 gal w. opt. watert.) Water tank (front drum steering) 227 gal

Engine
Manufacturer/Model Cummins F3.8 V Type Water cooled turbo diesel Rated power, SAE J1995 100 kW (135.0 hp ) @ 2,200 rpm Fuel tank capacity 48 gal DEF tank capacity 4 gal Alternative Engine Manufacturer/Model Type Water cooled turbo diesel Rated power, SAE J1995 Fuel tank capacity 47.56 gal DEF tank capacity 3.96 gal Alternative Engine Manufacturer/Model Cummins QSF 3.8 IIIA/T3 Type Water cooled turbo diesel Rated power, SAE J1995 104 kW (140 hp) @ 2200 rpm

Hydraulic system
Driving Axial piston pump with variable displacement. Radial piston motors (2) with variable displacement. Vibration Axial piston pumps (2) with variable displacement. Axial piston motors (2) with constant displacement. Steering Gear pump with constant displacement. Service brake Hydrostatic in forward and reverse lever. Parking/Emergency brake Failsafe multidisc brake in both drums.

SPARE PARTS MANUALS+
