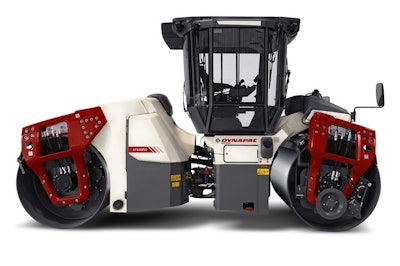

DYNAPAC CC6200 VI
Operating Mass: 12400 kg
SLL (front/rear): 29.1 kg/cm / 29.1 kg/cm
Compaction width: 2130 mm
DYNAPAC CC6200 VI DOUBLE DRUM VIBRATORY ROLLERS 0MY COMPARISON EXPERIENCE PICTURES DIMENSIONS

TECHNICAL DATA+
Masses
Max. operating mass 13950 kg Operating mass (incl. ROPS) 12400 kg Module mass (front/rear) 6200 kg/ 6200 kg

Traction
Speed range 0-12 km/h Vertical oscillation ±7° Max. theoretical gradeability 32 %

Compaction
Centrifugal force (high/low amplitude) 157 kN/103 kN Nominal amplitude (high/low) 0.8 mm / 0.3 mm Static linear load (front/rear) 29.1 kg/cm / 29.1 kg/cm Vibration frequency (high/low amplitude) 51 Hz/67 Hz Water tank volume 850 liters / (1050 liters w. opt. watert.)

Engine
Manufacturer/Model Cummins F3.8 V Type Water cooled turbo diesel Rated power, SAE J1995 100 kW (135 hp ) @ 2200 rpm Fuel tank capacity 180 l DEF tank capacity 15 l Alternative Engine Manufacturer/Model Cummins QSF3.8 IV/T4f Type Water cooled turbo diesel Rated power, SAE J1995 97 kW (130 hp ) @ 2200 rpm Fuel tank capacity 180 l DEF tank capacity 15 l Alternative Engine Manufacturer/Model Cummins QSF 3.8 IIIA/T3 Type Water cooled turbo diesel Rated power, SAE J1995 104 kW (140 hp) @ 2200 rpm

Hydraulic system
Driving Axial piston pump with variable displacement. Radial piston motors (2) with variable displacement. Vibration Axial piston pumps (2) with variable displacement. Axial piston motors (2) with constant displacement. Steering Gear pump with constant displacement. Service brake Hydrostatic in forward and reverse lever.

Parking/
Emergency brake Failsafe multidisc brake in both drums. History Production start (year) 2017 Production end (year) Note Generation VI of big asphalt rollers made a brand identity update in the late 2017 due to divestment from Atlas Copco and integration into FAYAT Construction Equipment division.
