CC800

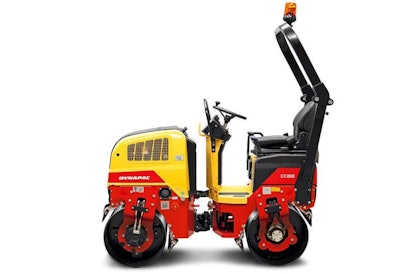

The CC800 is a member of Dynapac's small asphalt roller family. With a drum width of 800 mm it's primarily used for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas. The large drum diameter and drive motors connected in series contributes to excellent accessibility and hill-climbing capacity. Propulsion and vibration naturally come as standard on both drums.

Operating Mass: 1575 kgSLL (front/rear): 9.3/ 10.0 kg/cm Compaction width: 800 mm

TECHNICAL DATA+
Masses
Max. operating mass 1665 kg Operating mass (incl. ROPS) 1575 kg Module mass (front/rear) 740 kg/ 835 kg

Traction
Speed range (Dual/TC/AS) 0-6 Vertical oscillation ±13° Max. theoretical gradeability %

Compaction
Centrifugal force 17 kN Nominal amplitude 0.4 mm Static linear load (front/rear) 9.3/ 10.0 kg/cm Vibration frequency 70 Hz Water tank 110 l

Engine
Manufacturer/Model Perkins 403D-11 Type Water cooled diesel Rated power, SAE J1995 17 kW (23.5 hp ) @ 2600 rpm Fuel tank capacity 23 l Alternative Engine Manufacturer/Model Hydraulic system Driving Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement. Vibration Gear pump/motors with constant displacement. Steering Gear pump with constant displacem. Service brake Hydrostatic in forward and reverse lever. Parking/ Emergency brake Failsafe brake in both drums.

Fill out the form below to request more information about CC800
