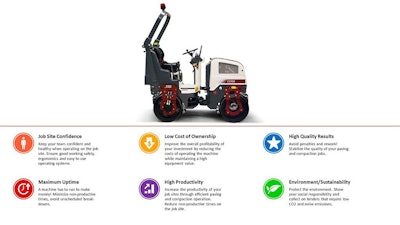

DYNAPAC CC900G
The Dynapac CC900G is a small asphalt roller with a drum width of 900 mm. This machine is equipped with a powerful petrol engine, which together with the large drum diameter and drive motors connected in series contributes to excellent accessibility and hill-climbing capacity. It's primarily used for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas. Dynapac CC900G has vibration on the front drum and a static rear drum. This machine is not CE-certified.

TECHNICAL DATA+
Masses
Max. operating mass 2,900 lbs Operating mass (incl. ROPS) 2,800 lbs Module mass (front/rear) 1,200 lbs/ 1,600 lbs

Traction
Speed range 0-5 mph Vertical oscillation ±13° Max. theoretical gradeability 35 %

Compaction
Centrifugal force 3,800 lb Nominal amplitude 0.016 in Static linear load (front/rear) 34 / 44 lbs/in Vibration frequency 4,200 vpm Water tank 50 gal

Engine
Manufacturer/Model Honda GX630RH QYD Rated power, SAE J1995 19 hp @ 3,000 rpm Fuel tank capacity 6 gal

EQUIPMENT (STANDARD AND OPTIONS)+
Standard Emergency stop, Horn, Hour meter, Ignition key, Warninglight for brakes, Warning light for hydraulic oil temp Foldable ROPS (incl. seat belt), Seat safety switch, Sliding operator seat Propulsion in both drums Vibration on front drum Towing eyelet (front/rear) Pressurized water system Spring loaded scrapers
