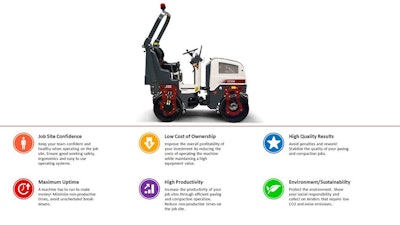

DYNAPAC CC950
Operating Mass: 1350 kgSLL (front/rear): 7.1/ 7.8 kg/cm Compaction width: 900 mm

TECHNICAL DATA+
Masses
Max. operating mass 1400 kg Operating mass (incl. ROPS) 1350 kg Module mass (front/rear) 645 kg/ 705 kg

Traction
Speed range (Dual/TC/AS) 0-8 km/h Vertical oscillation ±13° Max. theoretical gradeability 35 %

Compaction
Centrifugal force 16.7 kN Nominal amplitude 0.4 mm Static linear load (front/rear) 7.1/ 7.8 kg/cm Vibration frequency 70 Hz Water tank volume 190 l

Engine
Manufacturer/Model Kubota D722-E4B Type Vertical, water-cooled, 4-cycle IDI diesel engine Rated power, SAE J1995 14.9 kW (20.3 hp ) @ 3,600 U/Min. Fuel tank capacity 23 l Alternative Engine Manufacturer/Model

Hydraulic system
Driving Axial piston pump with variable displacement. 2 radial piston motors with constant displacement. Vibration Gear pump/motors with constant displacement. Steering Gear pump with constant displacement. Service brake Hydrostatic in forward and reverse lever.

Parking/
Emergency brake Failsafe brake in both drums. History Production start (year) 2015 Production end (year) Note Asia model, replaces Dynapac CC900G, with diesel engine
