DV+ 70i VO-S

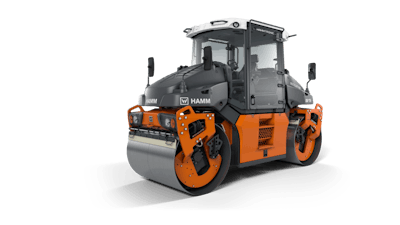

Tandem roller with vibrating roller drum and oscillation drum EU Stage V / EPA Tier 4 7,815 kg 1,500 mm
Highlights
Operating concept Easy Drive High compaction quality through optimum setting of the compaction parameters Intelligent water sprinkler system Large panorama cabin with clear view concept and free visibility of the drums and the construction site Compaction with oscillation
Equipment
12 V sockets (double) 2 large working and rear view mirrors Foldable scraper Operating concept Easy Drive Pressurized refilling of water tanks from below Pressure water sprinkling with interval switch ECO mode Operator's platform with entry from both sides Frequency control Speed-controlled water sprinkling system Speed preselect Cabin floor window, front and rear Vibration-isolated operator's platform Track offset, hydraulic Automatic vibration system Spray system with spray bar front and rear Water filtering (triple) Water tank front and rear, can be filled from both sides Central water drain CE conformity ROPS with protective roof, metal Mechanical adjustment of seat-operating unit Working lights Optional equipment Heating and air conditioning Multifunction armrest, right, foldable Electrical adjustment of seat-operating unit Safety belt monitoring device Radio HCQ Navigator Fire extinguisher Edge pressing and cutting equipment Chip spreader Anti-freeze injection system Central grease point Bypass filter system HAMM Compaction Meter (HCM) Automatic engine-off function HAMM Temperature Meter (HTM) Telematics interface Rotating beacon Mobile cooling box Coming home lighting Battery isolation switch Water tank cover, lockable Lamp protection grille Additional mirror Drum edge lighting Drum lighting Camera system
Easy Drive - four machine series, one operating concept
Modern construction machines feature a number of functions and are designed for optimum efficiency. Even more essential for success is simple, intuitive operation - this guarantees short training times and incredibly high productivity in every construction project. With Easy Drive, HAMM has therefore developed a standardised operating concept for tandem rollers (HD+ and DV+ series), soil compactors (H series) and pneumatic tyre rollers (HP series - Tier 4) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all.
The Easy Drive operating concept at a glance:
Easy Drive is essentially made up of three operating units - the dashboard with display, the joystick and a multifunction armrest. Apart from a few machine-specific functions, these are designed to be practically identical and language-neutral. This means that all machines in which Easy Drive is installed use the same colours on buttons and operating elements to indicate that they belong to the same functional group. Operating elements for identical functions are also always positioned in the same place in the driver's platform. The steering is controlled using a steering wheel, but all other functions are controlled using the joystick or multifunction armrest. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
