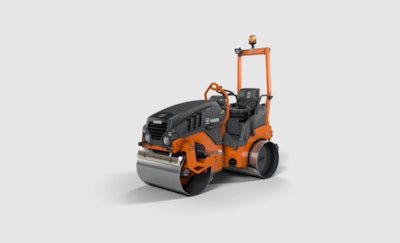

HD 10C VV
Tandem roller with two vibrating roller drums EU Stage V / EPA Tier 4 1,680 kg 1,000 mm
Compact dimensions Excellent view of the drum edges, the machine and the construction site surroundings Easy transport, simple loading Simple, intuitive and language-neutral operation Clear Side - one-sided drum suspension
Equipment
12 V socket 3-point articulation Dashboard with displays, indicator lights and switches Dashboard cover, lockable and weather-resistant Clear Side Pressure water sprinkling with interval switch Operator's platform with entry from both sides V-belt protection Automatic vibration system Water filtering (triple) Central lifting bracket Optional equipment Plastic scraper, foldable Additional drive lever, left Protective roof Automatic engine-off function Back-up alarm (reversing) Working lights Rotating beacon Battery isolating switch Bonnet with sound insulation Water drain valve Additional mirror Tool kit
Three-point articulation - guarantees optimum driving comfort
Working on a range of construction sites in the earthworks and asphalt sectors requires rollers to have optimum driving and steering characteristics. To meet this need, HAMM has installed three-point articulation - a more sophisticated upgrade from conventional articulated joints - in all soil compactors and tandem rollers in the HD CompactLine, HD and HD+ series as standard.
Three-point articulation at a glance:
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. As the connector between the front and rear frame, the three-point articulation ensures optimum steering characteristics, driving comfort and safety while driving on difficult terrain.
The advantages of three-point articulation: Comfortable driving, safe steering and high directional stability, even at high speeds (restoring force)
Optimum traction when negotiating curves thanks to even weight distribution Low impact load for the driver thanks to cushioning that reduces the effect of uneven ground (connecting link reduces force)
Large steering angle, small turning circle Asphalt: Prevents ims (cutting marks) thanks to even weight distribution across the rear axle Earthworks: Excellent safety and tilt stability on uneven ground as the pushing angle between the front and rear frame has been halved (connecting link)
