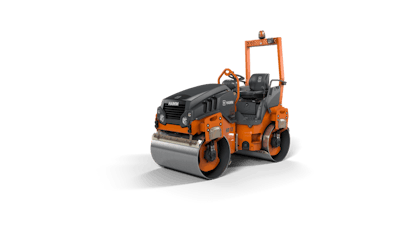

HD 12 VV
Tandem roller with two vibrating roller drums EU Stage IIIA 2,695 kg 1,200 mm
Highlights
Excellent view of the drum edges, the machine and the construction site surroundings Compact dimensions Ergonomic driver platform Simple, intuitive and language-neutral operation Easy transport, simple loading
Three-point articulation - guarantees optimum driving comfort
Working on a range of construction sites in the earthworks and asphalt sectors requires rollers to have optimum driving and steering characteristics. To meet this need, HAMM has installed three-point articulation - a more sophisticated upgrade from conventional articulated joints - in all soil compactors and tandem rollers in the HD CompactLine, HD and HD+ series as standard.
Three-point articulation at a glance:
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. As the connector between the front and rear frame, the three-point articulation ensures optimum steering characteristics, driving comfort and safety while driving on difficult terrain.
The advantages of three-point articulation:
Comfortable driving, safe steering and high directional stability, even at high speeds (restoring force)
Optimum traction when negotiating curves thanks to even weight distribution Low impact load for the driver thanks to cushioning that reduces the effect of uneven ground (connecting link reduces force)
Large steering angle, small turning circle
Asphalt:
Prevents ims (cutting marks) thanks to even weight distribution across the rear axle Earthworks: Excellent safety and tilt stability on uneven ground as the pushing angle between the front and rear frame has been halved (connecting link)
Equipment
12 V socket 3-point articulation Dashboard with displays, indicator lights and switches Dashboard cover, lockable and weather-resistant Pressure water sprinkling with interval switch Operator's platform with entry from both sides Drive lever, left and right Vibration-isolated operator's platform Track offset, mechanical Automatic vibration system Water filtering (triple) Central water drain Central lifting bracket ROPS, rigid Optional equipment Plastic scraper, foldable Edge pressing and cutting equipment Track indicator Chip spreader Thermal aprons All-wheel lock Anti-freeze injection system HAMM Compaction Meter (HCM) HAMM Temperature Meter (HTM) Working lights Drum edge lighting Water drain valve Tow eye, at the front Tow hitch V-belt protection
