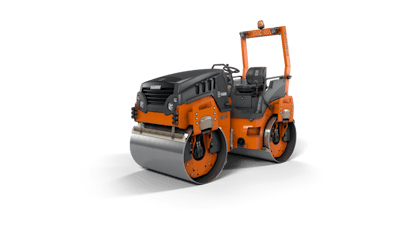

HD 14i VO
Tandem roller with vibrating roller drum and oscillation drum EU Stage V / EPA Tier 4 54.3 in 10,551 lbs
Excellent view of drum edge, machine and construction site environment Compaction with oscillation Compact dimensions Simple, intuitive and language-neutral control Ergonomic driver platform
Three-point articulation - guarantees optimum driving comfort
Working on a range of construction sites in the earthworks and asphalt sectors requires rollers to have optimum driving and steering characteristics. To meet this need, HAMM has installed three-point articulation - a more sophisticated upgrade from conventional articulated joints - in all soil compactors and tandem rollers in the HD CompactLine, HD and HD+ series as standard.
Three-point articulation at a glance:
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. As the connector between the front and rear frame, the three-point articulation ensures optimum steering characteristics, driving comfort and safety while driving on difficult terrain.
The advantages of three-point articulation:
Comfortable driving, safe steering and high directional stability, even at high speeds (restoring force)
Optimum traction when negotiating curves thanks to even weight distribution Low impact load for the driver thanks to cushioning that reduces the effect of uneven ground (connecting link reduces force)
Large steering angle, small turning circle
Asphalt:
Prevents ims (cutting marks) thanks to even weight distribution across the rear axle Earthworks: Excellent safety and tilt stability on uneven ground as the pushing angle between the front and rear frame has been halved (connecting link)
Equipment 12 V outlet 3-point articulation Dashboard with displays, indicator lights and switches Dashboard cover, lockable and weather-resistant Pressure water sprinkling with interval switch Operator's platform with entry from both sides Left and right drive lever V-belt protection Mechanical battery isolation switch Track offset, mechanical Automatic vibration system Water filtering (triple) Central water drain CompactLine front suspension eyelet Optional equipment Plastic scraper, foldable ROPS cabin with heating ROPS, foldable Safety belt monitoring device Radio Protective roof Edge pressing and cutting equipment Chip spreader Compaction meter HCQ HAMM Temperature Meter (HTM) Back-up alarm Telematics system, interface Working light Rotating beacon Battery isolating switch Bonnet with sound insulation Additional mirror Tool kit Drum edge lighting
