HD 8 VV

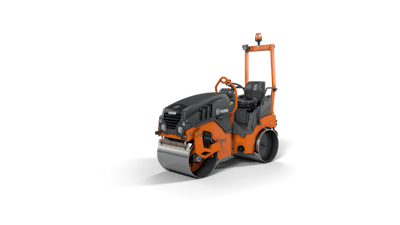

Tandem roller with two vibrating roller drums EU Stage V / EPA Tier 4 1,590 kg 800 mm
Technologies
Technical specifications Related products
Contact Simple, intuitive and language-neutral operation Clear Side - one-sided drum suspension Easy transport, simple loading Compact dimensions Excellent view of the drum edges, the machine and the construction site surroundings 3-point articulation 3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Technical specifications Series Name Description Exhaust emissions category Series HD CompactLine HD 8 VV Tandem roller with two vibrating roller drums EU Stage V / EPA Tier 4 H263
Three-point articulation - guarantees optimum driving comfort Working on a range of construction sites in the earthworks and asphalt sectors requires rollers to have optimum driving and steering characteristics. To meet this need, HAMM has installed three-point articulation - a more sophisticated upgrade from conventional articulated joints - in all soil compactors and tandem rollers in the HD CompactLine, HD and HD+ series as standard.
Three-point articulation at a glance:
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. As the connector between the front and rear frame, the three-point articulation ensures optimum steering characteristics, driving comfort and safety while driving on difficult terrain.
The advantages of three-point articulation: Comfortable driving, safe steering and high directional stability, even at high speeds (restoring force)
Optimum traction when negotiating curves thanks to even weight distribution Low impact load for the driver thanks to cushioning that reduces the effect of uneven ground (connecting link reduces force)
Large steering angle, small turning circle
Asphalt:
Prevents ims (cutting marks) thanks to even weight distribution across the rear axle Earthworks: Excellent safety and tilt stability on uneven ground as the pushing angle between the front and rear frame has been halved (connecting link)
