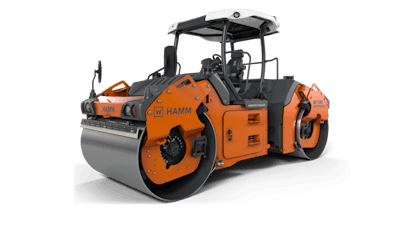

HD+ 120i VV-HF
Tandem roller with two vibrating roller drums EU Stage V / EPA Tier 4 78 in 28,500 lbs
Highlights
Operating concept Easy Drive Electronic machine management Hammtronic 3-point articulation for even weight distribution and excellent directional stability Track offset for comfortable starting and driving away and compacting at curbsides Excellent view of machine and construction site
Equipment
12 V outlet 2 large working and rear view mirrors Foldable scraper Operating concept Easy Drive Pressure water sprinkling with interval switch ECO mode Operator's platform with entry from both sides Speed-controlled water sprinkling system Speed preselect Vibration-isolated operator's platform Track offset, hydraulic Spray system with spray bars front and rear Water filtering (triple) Water tank front and rear, can be filled from both sides Central water drain Optional equipment Working light Locking device HAMM Temperature Meter (HTM) Dashboard cover ROPS cabin with non-split doors Drum edge lighting Back-up alarm Tool kit Coming home lighting Tachograph Fire extinguisher HCQ navigator Track offset display Edge pressing and cutting equipment Heating and air conditioning Automatic engine-off function Radio Rotating beacon Compaction meter HCQ Cutting disc
Three-point articulation - guarantees optimum driving comfort
Working on a range of construction sites in the earthworks and asphalt sectors requires rollers to have optimum driving and steering characteristics. To meet this need, HAMM has installed three-point articulation - a more sophisticated upgrade from conventional articulated joints - in all soil compactors and tandem rollers in the HD CompactLine, HD and HD+ series as standard.
Three-point articulation at a glance:
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. As the connector between the front and rear frame, the three-point articulation ensures optimum steering characteristics, driving comfort and safety while driving on difficult terrain.
The advantages of three-point articulation:
Comfortable driving, safe steering and high directional stability, even at high speeds (restoring force)
Optimum traction when negotiating curves thanks to even weight distribution Low impact load for the driver thanks to cushioning that reduces the effect of uneven ground (connecting link reduces force)
Large steering angle, small turning circle
Asphalt:
Prevents ims (cutting marks) thanks to even weight distribution across the rear axle Earthworks: Excellent safety and tilt stability on uneven ground as the pushing angle between the front and rear frame has been halved (connecting link)
