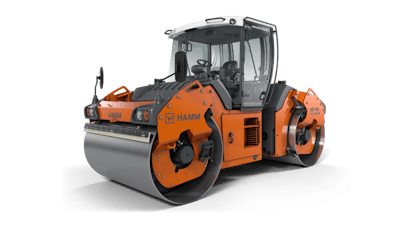

HD+ 140 VO
Tandem roller with vibrating roller drum and oscillation drum EU Stage IIIA / EPA Tier 3 13,045 kg 2,140 mm
Highlights
Excellent view of the machine and the construction site Simple, intuitive and language-neutral operation Seat operating unit can be moved and rotated Track offset for comfortable start up, moving away and compacting at curb edges Compaction with oscillation
Three-point articulation - guarantees optimum driving comfort
Working on a range of construction sites in the earthworks and asphalt sectors requires rollers to have optimum driving and steering characteristics. To meet this need, HAMM has installed three-point articulation - a more sophisticated upgrade from conventional articulated joints - in all soil compactors and tandem rollers in the HD CompactLine, HD and HD+ series as standard.
Three-point articulation at a glance:
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. As the connector between the front and rear frame, the three-point articulation ensures optimum steering characteristics, driving comfort and safety while driving on difficult terrain.
The advantages of three-point articulation:
Comfortable driving, safe steering and high directional stability, even at high speeds (restoring force)
Optimum traction when negotiating curves thanks to even weight distribution Low impact load for the driver thanks to cushioning that reduces the effect of uneven ground (connecting link reduces force)
Large steering angle, small turning circle
Asphalt:
Prevents ims (cutting marks) thanks to even weight distribution across the rear axle Earthworks: Excellent safety and tilt stability on uneven ground as the pushing angle between the front and rear frame has been halved (connecting link)
Equipment
2 water pumps Foldable scraper Dashboard with displays, indicator lights and switches Tiltable dashboard Battery isolation switch Spring-mounted driver's seat with armrests and safety belt Hammtronic - electronic machine management Seat-operating unit, can be moved and rotated laterally Track offset Vibration parameters, adjustable individually Spray system with spray bars front and rear Water filtering (triple) Water tank front and rear, can be filled from both sides Central water drain Optional equipment ROPS cabin with split doors ROPS, rigid Air conditioning Steering column with comfort exit and tiltable dashboard Safety belt monitoring device Additional drive lever, left Radio HCQ Navigator Protective roof Frequency control HAMM Compaction Meter (HCM) HAMM Temperature Meter (HTM) Track offset display Camera system Back-up alarm (reversing) Telematics interface Working lights Rotating beacon Drum edge lighting Edge pressing and cutting equipment Version with additional fuel prefilter
