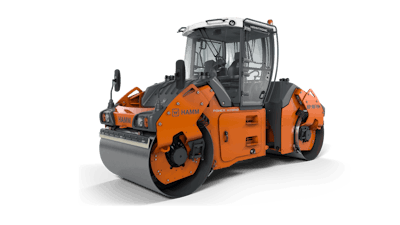

HD+ 90i PH
Tandem roller with two vibrating roller drums EU Stage V / EPA Tier 4 9,220 kg 1,680 mm

Highlights
Excellent view of the machine and the construction site Electronic machine management Hammtronic Operating concept Easy Drive 3-point articulation for even weight distribution and excellent on-centre feel Hybrid hydraulic drive

Equipment
12 V socket 2 large working and rear view mirrors Foldable scraper Dashboard with displays, indicator lights and function key Operating concept Easy Drive Electric powered cooling fan Pressure water sprinkling with interval switch ECO mode Operator's platform with entry from both sides Speed-controlled water sprinkling system Speed preselect Vibration-isolated operator's platform Track offset, hydraulic Spray system with spray bars front and rear Water filtering (triple) Water tank front and rear, can be filled from both sides Central water drain Additional hydraulic performance support up to 20 kW Optional equipment Heating and air conditioning Tachograph HCQ Navigator Dashboard cover, lockable Edge pressing and cutting equipment HCQ compaction meter Automatic engine-off function HAMM Temperature Meter (HTM) Track offset display Back-up alarm (reversing) Telematics interface Working lights

Three-point articulation - guarantees optimum driving comfort
Working on a range of construction sites in the earthworks and asphalt sectors requires rollers to have optimum driving and steering characteristics. To meet this need, HAMM has installed three-point articulation - a more sophisticated upgrade from conventional articulated joints - in all soil compactors and tandem rollers in the HD CompactLine, HD and HD+ series as standard.

Three-point articulation at a glance:
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. As the connector between the front and rear frame, the three-point articulation ensures optimum steering characteristics, driving comfort and safety while driving on difficult terrain.

The advantages of three-point articulation:
Comfortable driving, safe steering and high directional stability, even at high speeds (restoring force)

Optimum traction when negotiating curves thanks to even weight distribution Low impact load for the driver thanks to cushioning that reduces the effect of uneven ground (connecting link reduces force)

Large steering angle, small turning circle

Asphalt:
Prevents ims (cutting marks) thanks to even weight distribution across the rear axle Earthworks: Excellent safety and tilt stability on uneven ground as the pushing angle between the front and rear frame has been halved (connecting link)
