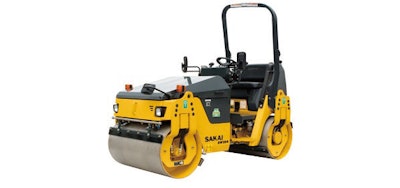

SW354

6532e1a3

SW354
OPTIONS
Canopy/sun shade Strobe/Beacon Cocoa mat kit Drum lights Halogen work lights kit LED work lights kit Extended warranty Telematics Compaction Control Value (CCV) BROCHURE Categories: 300 Series, Asphalt RollersDescription Features & Benefits: No DPF/Regen necessary! Sakai's ECO-Mode: offering high-performance and low-fuel usage 4,000 VPM Counter-rotating eccentric weights All vibration controls at instrument panel, offering several setup options for a variety of applications and mix designs Chamfered drum edges reduce checking Operator station with extra-comfort bench seat Excellent drum edge visibility Heavy duty center hitch design Independent drum vibration Superior shock isolation systems Dual drum hydrostatic drive Excellent curb clearance Multi-filtered spray system with timed spray control Foldable ROPS & seat belt Front lights, turn signals and rear work light come standard

Specifications
DRUM
Size (w x d) 47 X 27 ins | 1200 X 675 mm OPERATING
Weight 6,525 lbs | 2,960 Kg VIBRATION
Frequency 4000 vpm | 67 Hz Centrifugal Force 6,520 lbs | 29 kN Nominal Amplitude .012 ins | .31 mm ENGINE
Make & Model Kubota (Final Tier 4) D1703-M-DI-EF03 Horsepower 24 Hp | 18.2 kW BRAKING
Systems Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake Fluids Fuel Capacity 10.6 gal | 40 lit Sprinkler Capacity 53 gal | 200 lit

Fill out the form below to request more information about SW354
