SW504W

3dc7f8ca

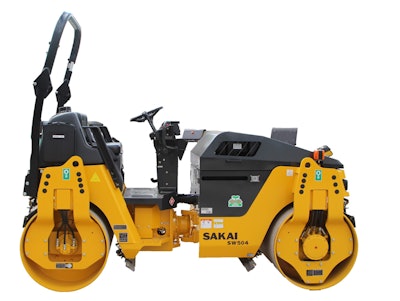

SW504
OPTIONS
Padlock Drum Lights Floor Matt Antifreeze tank LED Working Light BROCHURE Categories: 500 Series, Asphalt RollersDescription Features & Benefits: 3,300 VPM Counter-rotating eccentric weights All vibration controls at instrument panel Chamfered drum edges Excellent drum edge visibility Heavy-duty center hitch design Durable rubber isolator system for vibratory drums Independent drum vibration Great side and curb clearance Triple-filtered spray system Dual drum hydrostatic drive ROPS and seat belt standard Braking lights Turn signals Mirrors

Specifications - SW504
DRUM Size (w x d) 51? x 31? | 1,300 X 800 mm OPERATING Weight 8,955 lbs | 4,060 kg VIBRATION (Front Drum) Frequency 3,300 vpm | 55 Hz Centrifugal Force (L / H) 5,955 / 7,710 lbs | 26.5 / 34.3 kN Nominal Amplitude (L / H) .011? / .014? | .27 / .35 mm ENGINE Make & Model Kubota (Final Tier 4) D1803 Horsepower 43 Hp | 13.3 kW @2,400 rpm

Specifications - SW504W (wide drum)
DRUM Size (w x d) 54 x 31 | 1,380 x 800 mm OPERATING Weight 9,260 lbs | 4,200 kg VIBRATION (Front Drum) Frequency 3,300 vpm | 55 Hz Centrifugal Force (L / H) 5,955 / 7,710 lbs | 26.5 / 34.3 Nominal Amplitude (L / H) .010 / .013 | .26 / .34 mm ENGINE Make & Model Kubota (Final Tier 4) D1803 Horsepower 43 Hp | 13.3 kW @2,400 rpm

Fill out the form below to request more information about SW504W
