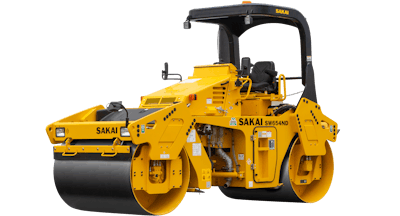

SW654ND

3e85b0aa

SW654ND
OPTIONS
ROPS Strobe Halogen work lights kit LED work lights kit Extended warranty Cocoa mat kit Temperature sensor BROCHURE Categories: 600 Series, Asphalt RollersDescription Features & Benefits: Both drums capable of oscillation or vibration Several amplitude or oscillation and frequency setting combinations per drum All vibration controls at instrument panel Chamfered drum edges Excellent drum edge visibility Heavy duty center hitch design Superior shock isolation systems Independent drum vibration Great side and curb clearance Multi-filtered spray system Dual drum hydrostatic drive ROPS and seat belt Front and rear lights Braking lights Turn signals Mirrors Sliding and adjustable seat

Specifications
DRUM Size (w x d) 58 X 42 ins | 1480 X 1070 mm OPERATING Weight 16,250 lbs | 7,370 kg VIBRATION Frequency Vibe: 2,940 vpm | 49 Hz Osc: 2,940 vpm | 49 Hz Centrifugal Force Vibe: 15,285 lbs | 68 kN Osc: 27,875 lbs | 124 kN Nominal Amplitude Vibe: .020? | .52 mm Osc: .030? | .75 mm ENGINE Make & Model Kubota V3307 T4 Final Horsepower 73 Hp | 54.6 kW @ 2200 rpm

BRAKING
Systems Hydrostatic Drive System Service Brake + SAHR Parking Brake + Combined Foot brake
