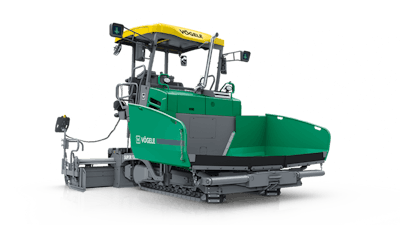

SUPER 1300-3i
Compact and powerful with the convenience of the Premium LineThe SUPER 1300-3i is extremely compact and yet has a high laydown rate and a paving width of up to 16 ft 5 in. With a range of paving widths extending from 2 ft 6 in to 16 ft 5 in, the SUPER 1300-3i copes effortlessly with combined foot and cycle paths, farm tracks and minor roads and areas.The highlights of the SUPER 1300-3i
Drive
Powerful and economical drive concept with a modern diesel engine
Range of applications
Tracked Compact Class paver with a wide range of applications and paving widths up to 16 ft 5 in (5 m)
Feed with mix
Optimum feeding with mix thanks to the large material hopper and PaveDock Assistant communication system
Technical specifications
EngineVersionManufacturerTypeExhaust emissions standardExhaust emissions after-treatmentECO mode outputNominal outputFuel tankEmission dataSound power level Daily noise exposure level liquid-cooled 4-cylinder diesel engineDeutzTCD 3.6 L4European exhaust emissions standard V, US standard EPA Tier 4fDOC, DPF, SCR92 hp / 1,600 rpm100 hp / 2,000 rpm28 Imp.gal105 dB
Undercarriage
VersionGround contactTraction drive crawler tracksLubrication of track rollersTrack tension adjusterSpeedsPaving speed (up to)Travel speed (up to)provided with rubber pads1,990 mm x 260 mmelectronically controlled separate hydraulic drive provided for each crawler tracklifetimespring assembly
Push-rollers
StandardPositionsoscillating, fold up with hopper sidescan be adjusted in a forward direction by 4 in
Conveyors
VersionDrive
Augers
VersionDriveSpeed
Height
Standard height
2with replaceable feeder bars, direction of conveyor temporarily reversibleseparate hydraulic drives, proportional control
85 rpminfinitely variablemechanically adjustable by 5 in
Screed
Screed heatingPower supplyType Basic width Maximum width Compacting systemsAB 340 5 ft 11 in 16 ft 5 in V, TVelectricthree-phase AC generator
Operating weight Length Maximum laydown rateScreed Total weightAB 340 V 23,480 lbsAB 340 TV 23,920 lbsScreed Total lengthAB 340 16 ft 3 in385 US t/hr
