803 dual power -

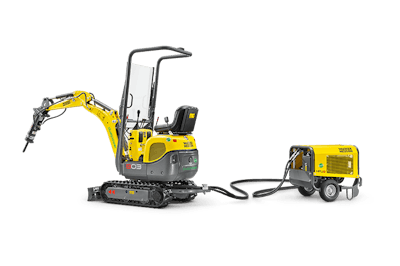

Wacker Neuson dual power is the innovative solution for an emission-free auxiliary drive. In addition to the integrated diesel engine, the electro-hydraulic unit HPU8 can be connected to the 803 compact excavator if necessary. The HPU8 is technically tailor-made to the requirements of the excavator 803. In this way, the excavator can be operated electrically and emission-free if necessary. The handling is easy: The generator is connected to the undercarriage via Plug & Play - done.Two drive options: Diesel and electro-hydraulic drive Emission-free if necessary: For work indoors and in sensitive environments Consistent performance with both drives - even in breaker operation. Unrestricted work movements: Rotatable 360° with both drives Easy handling: Excavator weight, dimensions and machine center of gravity are unchanged In addition to the existing diesel engine, the compact excavator can be operated emission-free via an electro-hydraulic unit.
Easy to transport:
Two openings are inset in the dozer blade in which the HPU8 can be suspended for transport.
Easy loading:
a sturdy lifting point for crane loading is attached on the connection lance.
Compact and practical:
The loading dimensions of 930 x 720 x 1,000 mm are ideal. And four sturdy tie-down lugs ensure rapid transport.
Sophisticated design:
Simple Plug & Play connection on the undercarriage. The lifting point bracket is used as a connection lance and guide for the hydraulic hoses of the HPU8 at the same time. With a few hand movements, it is removed from the generator and connected to the excavator. The positioning on the undercarriage means 360° freedom of movement with the excavator.
Operating data
Shipping weight min. 2,105 lb Operating weight 2,319 - 2,452 lb Biting force max. 1,012 lbf Breakout force max. 2,001 lbf Digging depth max. 69.41 in Dumping height 79.2 - 80.1 in Digging radius max. 121.7 in L x W x H 111.3 x 27.6 x 89 in Engine / Motor Engine / Motor manufacturer Yanmar Engine / Motor type 3TNV74F Engine / Motor Liquid-cooled, 3-cylinder diesel engine Displacement 60.57 in³ RPM / speed 2,500 rpm Engine performance according to ISO 15.41 hp Battery 20 CCA Fuel tank capacity 1.8 US gal Hydraulic system Duty pump Gear pumps Max. flow rate 2.83 + 2.83 US gpm Operating pressure for working and driving hydraulics 2,466 psi Operating pressure Slewing gear 1,015 psi RPM / speed Revolving superstructure 8 rpm Hydraulic oil tank 3.7 US gal Undercarriage Travel speed 1.1 mph Chain width 7.1 in Ground clearance 5.1 in Dozer Blade Width min. 27.6 in Height 7.9 in Stroke - Above ground 7.76 in Stroke - Below ground 6.85 in Sound level Sound level (LwA) according to 2000/14/EC 93 dB(A) Cabin - specified sound pressure level LpA 77 dB(A) Electro-hydraulic unit HPU 8 Operating data Engine / Motor Engine / Motor 3-phase electric motor Engine performance 10 hp Voltage 480 V Input current 16 A Frequency 60 Hz Hydraulic system Flow rate 5.2 US gpm Operating pressure 2,756 psi RPM / speed 1,728 rpm Hydraulic oil tank 2.4 US gal Hose 39.4 ft
General
Transport weight: 930 - 990 kg Rubber track 180 mm Dozer blade Working light mounted to the boom operator manual Adjustable seat with imitaton leather cover Retractable ROPS-Bar
Engine
Water cooled YANMAR diesel engine, type 3TNV7, 3-cylinder / 854 ccm, engine performance to ISO 9,6 kW (13,0 HP), rated speed 2.100 min-1
Hydraulic
Mechanical controls with lever operation Valve control according to ISO Auxiliary hydraulic connection for one lift arm direction of motion, mounted on boom Hydraulic telescoping undercarriage from 700 mm to 860 mm, with dozer blade extensions Of course, you can also configure your product based on the following options: Cabin
Splinter protection
Hydraulic
Biological oil Panolin Auxiliary hydraulic double action BP-Biohyd SE46 Piping for auxiliary hydraulic
Painting
Special paint machine RAL (for parts in yellow only) Special paint machine no RAL (for parts in yellow only)
Security
Security 24 C (2000) Security 36 C (3000) Security 48 C (4000) Security 60 C (5000)
Miscellaneous
Fluid Film (Conservation) EquipCare Driving signal Service valve Assambled Attachment Mechanical quick hitch system MS01
