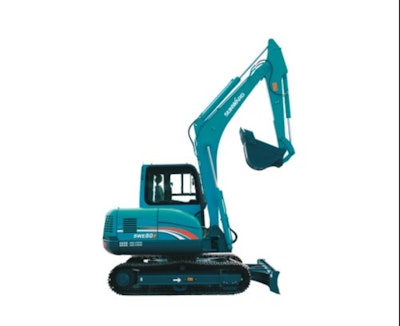

Sunward SWE80F Small Excavator
Feature
Overall Weight : 7940/7990kgEngine Power : 46.2kW/2200rpm
Feature Parameter List
Size(L×W×H) 6730×2160×2665mm(22'1''×7'1''×8'9'')
Outline dimension
A)Wheel-base 2200mm(7'3'')B)Crawler length 2785mm(9'2'')C)Ground clearance of platform 745mm(2'5'')D)Tail slewing radius of platform 1680mm(5'6'')E)Chassis width 2150mm(7'1'')F)Crawler width 450mm(18'')G)Ground clearance of chassis 335mm(13'')H)Crawler height 540mm(2'1'')I) Shipping length 6730mm(22'1'')J) Shipping height 2665mm(8'9'')K) Shipping width 2160mm(7'1'')
Operating range
a)Max. digging height 6820mm(22'5'')b)Max. dumping height 4870mm(16')c)Max. digging depth 4195mm(13'9'')d)Max. vertical digging depth 3365mm(11')e)Max. digging radius 7115mm(23'4'')f) Max. digging reach at ground level 7000mm(22'12'')g)Max. lifting height of bulldozer blade 420mm(17'')h)Max. digging depth of bulldozer blade 480mm(19'')I) Min. slewing radius 2520mm(8'3'')Bulldozer blade(Length×Width) 2160×450mm(7'1''×18'')
Performance parameters
Operating weight(rubber track / steel track) 7.94/7.99t(17505/17615lb)Standard bucket capacity 0.28m³(0.37yd³)Bucket digging force 53kN(11915lbf)Bucket rod digging force 36kN(8093lbf)Traveling speed 4.0/2.4km/h(2.5/1.5mph)Ground pressure 36.4kPa(5.28psi)Swing speed 10rpmEngine Brand YanmarPower 46.2kW/2200rpm(62hp)Displacement 3.319L(202.63in³)Oil tank capacityDiesel 118L(31.2gal)Hydraulic oil 96L(25.4gal)
