D3055226

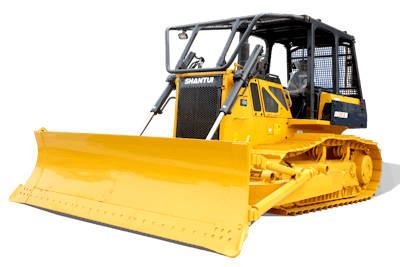

STANDARD BULLDOZER
SD20-B5
KEY SPECS
ENGINE POWER
With 180KW/1950rpm, this engine conforms to China-II emission regulation
OVERALL WEIGHT
21000KG
ENGINE MODEL
WD12G245E203

CHARACTERISTIC
Power System
The modular design is adopted to achieve easy assembling and disassembling and simple repairs.
The Weichai WP12 engine conforms to the China-II non-road machinery emission regulation, featuring strong power, low fuel consumption, high intelligence and efficiency, high parts universality, and low maintenance cost.
The modular units adopt cushioned installation to isolate the vibration and transmission and promote the machine reliability and life.
The normally-closed brake system is adopted to apply the braking whenever the engine is stopped, featuring high safety
.The four-point semi-suspension shock-absorbing installation reduces the machine vibration and improves the driving comfort.

Driving/Riding Environment
The integral ergonomic hexahedral cab features large space, excellent vision, and good airtightness.

The single accelerator pedal features comfortable operations.
The extensively adjustable seat and armrests provide the driver with the most comfortable operation;
The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to realize low vibrating noise.
The optional A/C and heating system, the intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio, toolbox, and fire extinguisher are installed to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.
The safety passage system of the machine guarantees the driver’s safety.
Working adaptability
The undercarriage system features long ground length, high ground clearance, stable driving, and excellent trafficability.
Depending on specific working condition, the semi-U blade, straight tilting blade, angle blade, three-shank ripper, traction frame, and winch can be installed to achieve power operating capability.
The standard LED working lamps improve the illumination capability and achieve higher safety and reliability during nighttime operations.

Easy maintenances
The structural parts inherit the excellent quality of Shantui mature products.
The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability;
The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.The structural parts inherit the excellent quality of Shantui mature products.
The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability;
The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.

Fill out the form below to request more information about SD20-B5
