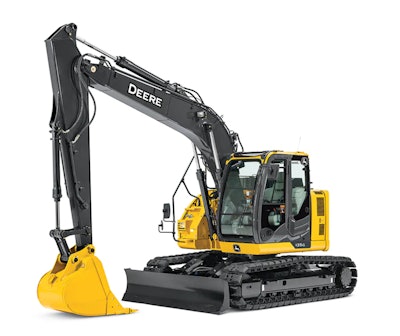

135G Mid-Size Excavator
Net Power: 75 kW (101 hp)
Max. Digging Depth: 5.495.98 m (18 ft. 4 in.20 ft. 0 in.)
Operating Weight: 14 30015 400 kg (31,50033,920 lb.)
Features
Collapse All
Reduced Tail-Swing Design
Whether up against a wall or between a rock and a hard place, this close-quarter specialist makes it all look pretty easy.
Engine
FT4/Stage IV engine requires no diesel particulate filter (DPF). Extended service intervals help maximize uptime.
Highly efficient heavy-duty cooling system keeps things cool, even in tough environments or high altitudes. Cool-on-demand suction-type fan helps reduce material buildup and maintenance.
Controls
Ergonomically correct short-throw pilot levers provide smooth, precise fingertip control with less movement and effort. Sliding switch provides proportional speed control.
Press the power-boost button on the right-hand control for extra digging power. Power boost also kicks in automatically in boom-up/lifting functions.
Productivity
Three productivity modes allow you to choose the digging style that fits the job:
High-productivity delivers more power and faster hydraulic response to move more material. Power delivers a balance of power, speed, and fuel economy for normal operation. Economy limits top speed and helps save fuel.
Visibility
Hood design, expansive front and side glass, narrow front cab posts, overhead glass, numerous mirrors and standard rearview camera provide optimal visibility.
John Deere
135G Mid-Size Excavator
CLOSEST COMPARISON
Operating Weight
ADD MODEL --Please Select-- Export to Excel Emission Rating Tier 4 / Stage IV Engine Manufacturer Isuzu Number Of Cylinders 4 Displacement, ltr (Inches³) 3 (182) Rated speed, rpm 2000 Engine Output - Net, kW (hp) 75 (101) Number Of Carrier Rollers - Each Side 1 Number Of Track Rollers - Each Side 7 Track Shoe Width, mm (inches) 600 (24)
DRIVELINE
Transport Length Mono Boom, mm (ft/in) 7370 (24 ft 2 in) Transport Height - Maximum, mm (ft/in) 2870 (9 ft 5 in) Overall Undercarriage Width, mm (ft/in) 2590 (8 ft 6 in) Track Length On Ground, mm (ft/in) 2880 (9 ft 5 in) Overall Undercarriage Length, mm (ft/in) 3580 (11 ft 9 in) Tailswing Radius, mm (ft/in) 1490 (4 ft 11 in) Ground Clearance, mm (inches) 410 (16) Width over fixed tracks, mm (ft/in) 2590 (8 ft 6 in) Track Gauge, mm (ft/in) 1990 (6 ft 6 in) Digging Reach - Mono Boom, mm (ft/in) 8390 (27 ft 6 in) Ground Level Reach - Mono Boom, mm (ft/in) 8240 (27 ft ) Dig Height - Mono Boom, mm (ft/in) 9290 (30 ft 5 in) Dump Height - Mono Boom, mm (ft/in) 7220 (22 ft 4 in) Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) 5270 (17 ft 3 in) Dig Depth - Mono Boom, mm (ft/in) 5490 (18 ft ) Standard Dipper, mm (ft/in) 2520 (8 ft 3 in)
