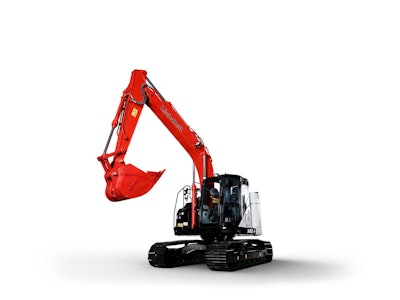

145 X4 SPIN ACE
SAE Net Horsepower 102 HP (76.4 kW)
Operating Weight 33,600 lbs (15.2 metric tons)
Grade Control Solutions
Link-Belt Precision Grade enables operators of all skill levels to increase their productivity by up to 50%. No more under or over excavating! Operators see bucket position relative to the desired grade as they work, helping their Link-Belt 145 X4 excavator achieve greater productivity through more precise and accurate machine operations. Minimal grade staking and checking enhances jobsite safety and efficiency.
Choose Link-Belt 2D Machine Guidance (MG) for consistent bucket grade and depth positioning on projects, or Link-Belt 2D Machine Control (MC) for semiautonomous operation, with the operator only controlling the arm.
SPECIFICATIONS UNITS US METRIC
Engine Make Isuzu Engine Model AR-4JJ1X Net HP 102 hp Max Dig Depth 19' 9 ft/in Reach at Ground Level 28' 3 ft/in Arm Force 14,800 lbf Bucket Digging Force 21,400 lbf Bucket Capacity, SAE Heaped 0.42 - 0.98 yd3 Max Travel Speed 3.5 mph
Standard Warranty
The quality and durability of Link-Belt X4 Excavators is evident in their 5-year/5,000-hour full machine warranty.
Top 10 Reasons to Buy an X4
Thinking of buying a Link-Belt X4 hydraulic excavator? From productivity to our customer-focused dealer network - see the Top 10 Reasons that's the correct decision.
Used Equipment
Looking for a used Link-Belt 145 X4 Spin Ace hydraulic excavator? Get the innovative, high-quality Link-Belt Excavators you know at the price you need - from our trusted Dealer network.
