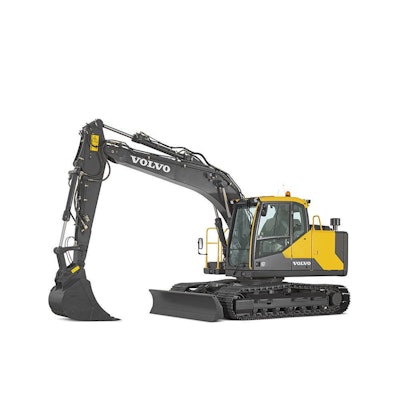

VOLVO EC140E
The Volvo EC140E crawler excavator has been designed to deliver every function with superior efficiency. This machine not only produces maximum uptime it also incorporates the latest fuel efficiency technology, to reduce emissions and consumption, while increasing productivity.This machine not only produces maximum uptime it also incorporates the latest fuel efficiency technology, to reduce emissions and consumption, while increasing productivity.]
TECHNICAL SPECIFICATIONS FOR EC140E
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
METRIC IMPERIAL
Operating weight 13,170 - 16,980 kg Gross power 90 kW ...at engine speed 2,000 rpm Bucket capacity 0.33 - 1.01 m³ Lifting capacity, along undercarriage 3,810 kg ...at reach / height 6 / 1.5 m Max. digging reach 8,360 mm Max. digging depth 5,560 mm Breakout force, SAE J1179 (Normal) 91.1 kN Breakout force, SAE J1179 (Boost) 96.6 kN Tear out force, SAE J1179 (Normal) 63.5 kN Overall width feet inches 2,590 mm Tear out force, SAE J1179 (Boost) 67.4 kN Tail swing radius 2,200 mm
NEW HMI
Building on the already strong reputation for operator space and comfort, Volvo always strive for improvement – even when they are industry first choice. By putting operator comfort first the EC140E has developed a cab which has everything at the operator’s fingertips. This not only increases wellbeing but will increase productivity without even trying.
SIDE VIEW CAMERA
As well as the rear view camera, there is now a side view camera option to cover the visual blind spot. Both views are displayed on the colour monitor, creating a safer working environment, protecting the operator and personnel on the ground.
SHORT-CUT KEY
For added convenience, functions such as windshield wipers, cameras, auto-mute or power max function can all be assigned a short-cut button on the joystick. This allows the operator to select a function during the application without disruption.
BLUETOOTH®
To aid operator convenience and support better productivity, you can now connect a Bluetooth device to the machine enabling the handsfree function.
SEATBELT WARNING ALARM
If the seatbelt is not buckled when the ignition key is turned, an alarm is triggered in intervals along with a continuous visual alert. This emphasises our priority for operator safety.
BUILT TO LAST
Volvo stands for quality and the EC140E is a symbol of this. It is a machine with a full armoury of state-of-the-art features but in every feature the number one priority is durability. Your working conditions are some of the most demanding and the EC140E responds through continued quality which you can be replied on.
ROPS
The cab features ROPS – this reinforced steel structure ensures the operator is protected in the unlikely event of the machine rolling over, while it also meets the ISO standards for safety
BOOM AND ARM
The robust design includes internal plates positioned to support pressure points during the range of applications. This helps disperse the stress from high-pressure areas of the boom and arm, to ensure maximum productivity time after time, during the most demanding applications.
LOWER FRAME
The intelligently designed X-shape lower frame enables even weight distribution increasing stability and durability - preventing damage from rock and debris.
ULTIMATE TOOL CARRIER
No customer has one job, so a machine should mirror these requirements. Volvo has listened to customer needs and built a machine in the EC140E that is not only capable of doing a variety of applications but can do them all at an unrivalled consistent quality – easily switching between attachments to maximise uptime and productivity.
ATTACHMENT MANAGEMENT SYSTEM
The password protected management system allows storage for up to 20 different attachments. It pre-sets and permits hydraulic flow and pressure to be adjusted within the cab, which ensures the use of various attachments for increased versatility.
IMPROVED SERVICE ACCESS
Proactive maintenance is crucial to prolong machine life – this is why making inspections safe and easy is a priority. Volvo have Grouped access points together and made them safer to reach to ensure regular checks to maximise machine uptime while reducing the chances of any surprises.
GROUPED FILTERS
Filters are well grouped and easily accessible from the ground level. This facilitates the speed and ease of servicing.
SINGLE LAYER COOLING SYSTEM
The radiator, charged air cooler and hydraulic oil cooler are situated side-by-side on a single layer, to maximize efficiency, reduce blockages and aid cleaning. The system is easily accessed from ground level by simply opening the side door
SERVICE INTERVAL ALERTS
Real-time service alerts are displayed on the colour monitor to enable diagnostic checks. Separate service intervals include – the engine oil filter, fuel filter, water separator, hydraulic oil and hydraulic oil filter. This ensures peace of mind and maximum uptime.
OPTIMIZED HYDRAULICS
All the EC140E features have been designed to work in harmony to deliver every function with superior efficiency. The machine not only produces maximum uptime it also incorporates the latest fuel efficiency technology, to reduce emissions and consumption, while increasing productivity.
VOLVO ENGINE
Featuring proven advanced technology, and built on decades of experience, Volvo’s robust D4 Stage IV engine boasts more power - while reducing both fuel consumption and emissions to deliver superior quality, reliability and durability.
MAIN CONTROL VALVE AND SOFTWARE
This valve is compatible with software in the machine – building on the already superior controllability by providing a smooth and easy operation. It is also compatible with Volvo’s ECO mode – this provides electronic pump control to enhance fuel efficiency.
