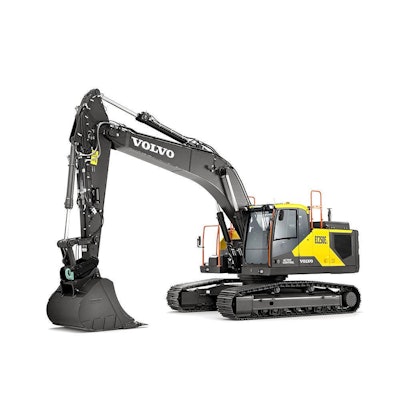

VOLVO EC250E
Proven Volvo technology combines with a host of new features in the newly enhanced EC250E, helping you achieve a lower cost per tonne. Move more for less with the new Volvo engine, hydraulic functions and optional Dig Assist apps. Count on this crawler excavator to deliver the reliability, performance and industry-leading operator environment you would expect from Volvo, with features including improved machine access, outstanding visibility, longer service intervals, Volvo attachments and Volvo services.Proven Volvo technology combines with a host of new features in the newly enhanced EC250E, helping you achieve a lower cost per tonne. Move more for less with the new Volvo engine, hydraulic functions and optional Dig Assist apps. Count on this crawler excavator to deliver the reliability, performance and industry-leading operator environment you would expect from Volvo, with features including improved machine access, outstanding visibility, longer service intervals, Volvo attachments and Volvo services.
TECHNICAL SPECIFICATIONS FOR EC250E
Here are the key specifications for this product model.
METRIC IMPERIAL
Operating weight 26,010 - 31,650 kg Gross power 168 kW ...at engine speed 1,600 rpm Bucket capacity 0.56 - 1.76 m³ Lifting capacity, along undercarriage 10,050 kg ...at reach / height 6 / 1.5 m Max. digging reach 10,340 mm Max. digging depth 7,060 mm Breakout force, SAE J1179 (Normal) 145 kN Breakout force, SAE J1179 (Boost) 157 kN Tear out force, SAE J1179 (Normal) 114 kN Overall width feet inches 3,190 mm Tear out force, SAE J1179 (Boost) 124 kN Tail swing radius 3,075 mm
MORE FUEL EFFICIENCY
A range of features combine in the EC250E to deliver up to 10% improvement in fuel efficiency. The new D8M Volvo engine reduces rated rpm from 1800 down to 1600, while also delivering a 5% increase in power, and the intelligent new generation electro-hydraulic system provides on-demand flow and reduces internal losses in the hydraulic circuit. Classic Volvo features such as ECO mode and selectable work modes further contribute to outstanding fuel efficiency.
MORE PRODUCTIVITY
Get more done in the EC250E thanks to an increase in engine power and improved hydraulic performance which contributes to faster cycle times. Machine productivity is further enhanced by best-in-class stability, new motion priority functions, boom down speed control and improved jack up speed.
MORE PRECISION
Unlock the full potential of your machine’s productivity with Dig Assist, powered by the 10” Volvo Co-Pilot display. Gain access to a set of smart apps, including 2D, In-Field Design, 3D software packages, On-Board Weighing and Volvo Active Control, designed to optimize the digging process.
MORE PRECISION
Unlock the full potential of your machine’s productivity with Dig Assist, powered by the 10” Volvo Co-Pilot display. Gain access to a set of smart apps, including 2D, In-Field Design, 3D software packages, On-Board Weighing and Volvo Active Control, designed to optimize the digging process.
MORE RESPONSIVENESS
With electric control joystick and full electric travel pedals, operators benefit from an improved response time. Machine controllability is enhanced further by Boom/Swing and Boom/Travel priority functions which enable operators to prioritize one function over another. Operators can also easily adjust the boom down speed, ideal for precision tasks which require optimum control.
SAFETY, INSIDE AND OUT
Operators can access the upper structure with safety and confidence thanks to the new 3-point right-hand side access. Industry renowned features such as bolted anti-slip steps, high visibility handrails and spacious, ergonomic and low-noise Volvo Care Cab ensure the highest levels of operator comfort and safety.
KNOW YOUR LIMITS
With Volvo Active Control, operators can easily set swing fence, height limit and depth limit from the Volvo Co-Pilot. This helps to avoid contact with side obstacles, overhead obstacles such as power lines and underground hazards such as pipes and cables.
SEE IT ALL
Operators benefit from outstanding visibility thanks to rear and side-view cameras. Furthermore, the optional Volvo Smart View uses front, rear and side cameras to provide a real-time, overhead view of the machine, resulting in safer machine rotation while working, especially in confined spaces.
A SMOOTHER SHIFT
New boom and arm bouncing reduction technology reduces machine shock, resulting in a more comfortable and productive operator performance. Comfort Drive Control further helps to reduce fatigue by enabling operators to steer the machine using the joystick rollers instead of the pedals.
EASILY ATTACH
Discover our range of Volvo quick couplers, including the new Steelwrist® Auto Connect Quick Coupler – enabling the quick and easy connection of hydraulic attachments from the comfort and safety of the cab. The quick coupler delivers 300 liters per minute of hydraulic flow directly to the attachment.
BUCKETS OF PRODUCTIVITY
Volvo buckets are the perfect tool to achieve maximum productivity when digging and re-handling in all conditions. Whether you are working with soft, medium or hard materials, our buckets deliver long life and feature original Volvo wear parts. Heavy-Duty variants provide optimum performance when digging in compact materials.
TAKE A BREAK
Available with a full range of tools, the HB-Series of hydraulic breakers are designed to be a perfect match for your Volvo. Powered by the machine’s constant auxiliary hydraulic flow, the breakers are configured to the specific weights of Volvo machines and are fully compatible with Volvo quick couplers for swift, safe and simple attachment changes.
DIG AT ANY ANGLE
Boost productivity and dig at any angle. Compatibility with SMP®, OilQuick®, Steelwrist®, Engcon® and Rototilt® tiltrotators provides the flexibility needed for precise construction jobs. The factory-fitted preparation system gives you the power to control both the excavator and tiltrotator using the original joysticks, with the information presented on the main display.
POWERED BY EXCELLENCE
With impressively high torque at low rpm, the new D8M Volvo engine builds on generations of proven Volvo engine technology to deliver superior reliability and performance. The engine features auto-regeneration technology, while auto-engine idle and auto-engine shutdown reduce unnecessary fuel consumption and wear.
LESS SERVICE REQUIREMENTS
The new electro-hydraulic system requires less hoses, therefore reducing the need for couplings, minimizing maintenance requirements and increasing reliability. Engine oil and engine oil filter change intervals have been doubled to 1000 hours, further ensuring the time and cost spent on maintenance is kept to a minimum.
GET THE MOST FROM YOUR MACHINE
While reliable and efficient machines of course play a vital role in reducing costs, enhancing safety and maximizing productivity, it is ultimately the performance of the operator that really makes the difference. We offer a wide range of training initiatives to help operators unlock the full capability of their Volvo excavator.
MAINTAIN PERFORMANCE
Stay on track with planned servicing and keep your asset covered with our range of flexible maintenance and repair options.
