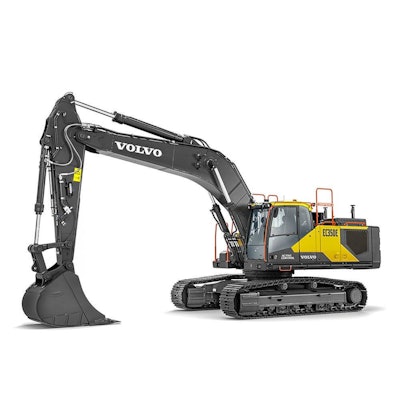

VOLVO EC350E
A true 35-tonne machine, the EC350E is a new size class excavator for Volvo and the perfect partner for general construction applications. Featuring the very latest in engineering excellence – including D8M Volvo engine, electro-hydraulic control system, customizable settings, bounce reduction technology and Dig Assist – the machine is designed to deliver outstanding levels of comfort, safety, versatility, efficiency and productivity.
A PURPOSE-BUILT 35-TONNER
In the EC350E Volvo has extended its excavator range to offer a 35-tonne machine which combines quality with exceptional value. The result is a machine which delivers performance, efficiency and maximum profitability in general construction applications.
TRANSPORT WITH EASE
When loaded on a trailer, the total height of the vehicle and machine is less than 4-meters, meaning the 35-tonne excavator can be easily transported without the need for dismantling, allowing you to move between jobsites in no time. Just load and go.
ADAPT TO THE JOB
Operators can easily select and adjust a number of functions depending on personal preferences and the task at hand, including Boom/Swing and Boom/Travel priority which enables to prioritize one function over another. Operators can also easily adjust the boom down speed, ideal for precision tasks which require optimum control.
PRODUCTIVITY UP, FUEL DOWN
Count on the EC350E to deliver outstanding levels of productivity and fuel efficiency. The next generation electro-hydraulic system provides on-demand flow and reduces internal losses in the hydraulic circuit, while the Volvo D8M engine features a rated power of 1600rpm and delivers impressively high torque at low rpm. Auto-engine idle and auto-engine shutdown further reduce unnecessary fuel consumption.
DO IT ALL
Take on any job with a range of factory-delivered attachments, such as Volvo buckets, breakers and quick couplers. Volvo Attachments are perfectly matched to your machine, helping to get the job done with optimum efficiency, productivity and performance.
TECHNICAL SPECIFICATIONS FOR EC350E
Here are the key specifications for this product model.
METRIC IMPERIAL
Product technical designation EC350E Operating weight 34,690 - 40,600 kg Gross power 220 kW ...at engine speed 1,600 rpm Bucket capacity 0.87 - 2.33 m³ Lifting capacity, along undercarriage 13,470 kg ...at reach / height 6 / 1.5 m Max. digging reach 11,123 mm Max. digging depth 7,490 mm Breakout force, SAE J1179 (Normal) 177 kN Breakout force, SAE J1179 (Boost) 192 kN Tear out force, SAE J1179 (Normal) 201 kN Overall width feet inches 3,190 mm Tear out force, SAE J1179 (Boost) 219 kN Tail swing radius 3,600 mm
A SMOOTHER SHIFT
Boom and arm bouncing reduction technology educes machine shock, resulting in a more comfortable and productive operator performance. Optional Comfort Drive Control further helps to reduce fatigue by enabling operators to steer the machine using the L8 joystick rollers instead of the pedals.
HOW YOU LIKE IT
Get ready for the working day in no time with customizable settings, including preferred control patterns and joystick responsiveness easily selected from the monitor. A ‘long push’ function on the joystick allows another shortcut to be set, and with the L8 joystick operators can create a shortcut to hydraulic priority functions.
INDUSTRY-RENOWNED CAB
Step inside the best cab on the market, the Volvo Care Cab. With low noise, low vibration and best-in-class visibility, operators will experience the ultimate in comfort and productivity. A convenient cab layout and ergonomic controls add to the unrivalled operator environment, all contributing towards an enhanced operator performance.
MORE PRECISION
Unlock the full potential of your machine’s productivity with Dig Assist, powered by the 10” Volvo Co-Pilot display. Gain access to a set of smart apps, including 2D, In-Field Design, 3D software packages, On-Board Weighing and Volvo Active Control, designed to optimize the digging process.
MORE CONTROL
The working day just got easier with Volvo Active Control functions, including automated boom and bucket movements, making the digging process more accurate and twice as fast. Simply set the grade from the Volvo Co-Pilot display, push the button and get to work – all controlled using a single lever.
GET AROUND SAFELY
Industry renowned features such as bolted anti-slip plates, high visibility handrails and guardrails ensure the highest levels of safety when negotiating the machine. For further convenience, the optional foldable cab entrance step and side walkways easily fold away to enable easy transportation.
INDUSTRY-LEADING VISIBILITY
The low machine hood design contributes to best-in-class visibility to the side and rear of the machine from the operator’s seat. This direct visibility is complemented by rear and side view cameras.
SIMPLE TO SERVICE
Maintenance is quicker and easier thanks to the electro-hydraulic system which requires less hoses. This reduces the need for couplings, which in turn minimizes maintenance requirements and increases reliability. 1000hr engine oil and engine oil filter change intervals further ensure the time and cost spent on maintenance is kept to a minimum.
GROUND-LEVEL ACCESS TO FILTERS
Grouped service points accessed from the ground level make routine maintenance quick and easy.
ENGINE PROTECTION
Keep your turbocharger working in top condition for longer with the optional delayed engine shutdown. To avoid overheating, the intelligent function turns the machine off when the turbo charger has cooled down to the appropriate temperature – and can be set to activate automatically by the operator.
MACHINE MONITORING MADE EASY
Maximize machine uptime and reduce repair costs with the CareTrack telematic system. Choose to keep track of your machine yourself or let us take care of it with Active Care. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required.
