VOLVO EC380EHR
Volvo is dedicated to producing the ultimate in heavy-duty demolition machinery. Purpose-built to suit the needs of this demanding task, the EC380EHR high reach demolition equipment from Volvo is equipped with robust components and a powerful engine to ensure you can keep working shift after shift. Ensuring a strong performance in even the toughest of demolition projects, this machine is the ideal partner.
FALLING OBJECT GUARD (FOG)
Volvo high reach excavators are built to ensure maximum safety in all demolition applications. A sturdy frame and cab offer ultimate protection against the falling debris that is common in demolition projects, and a wide, clear view of the jobsite provides excellent visibility for enhanced safety.
REAR-VIEW AND SIDE-VIEW CAMERAS
Offering the driver a complete view of the jobsite, rear- and side-view cameras ensure the machine is operated safely at all times.
REAR-VIEW AND SIDE-VIEW CAMERAS
Offering the driver a complete view of the jobsite, rear- and side-view cameras ensure the machine is operated safely at all times.
LEXAN WINDOW ON ROOF WITH WASHER/WIPER SYSTEM
A roof LEXAN window protects the operator underneath from falling objects for increased safety and upwards visibility. The window can be washed by a washer and wiper system that can be operated by a front window switch.
OTAL MOMENT INDICATOR
For ultimate safety in demanding operations, a Total moment indicator warns the operator if the machine approaches the maximum safe working load.
TECHNICAL SPECIFICATIONS FOR EC380E HR
Here are the key specifications for this product mode
METRIC IMPERIAL
Operating weight 51,000 kg Engine gross power 230 kW ...at engine speed 1,700 rpm Max. allowable tool weight 3,000 kg Max. pin height 23,060 mm Max. pin reach 14,490 mm Operating angle 24.4 degree Max. cab tilting angle 30 degree ...Fixed undercarriage - Extended 2,740 mm ...Undercarriage hydraulically retractable - Extended 3,380 mm ...Undercarriage hydraulically retractable - Retracted 2,390 mm
OOL WEIGHT AND PIN HEIGHT
The EC380EHR and EC480EHR are equipped with the latest innovations to increase your productivity. These machines are designed to make your working day worth more, and a robust structure, heavy tool weight and outstanding hydraulics ensure a strong performance in even the toughest of demolition projects.
VOLVO’S UNIQUE INITIAL SET UP SOLUTION
It takes just one man three to four hours to set-up the machine with Volvo’s quick assembly system, allowing a hydraulic track extension and hydraulic assisted boom assembly. The machine can be up and working with minimal labor as the bulk of the hard work is carried out by the operator from the safety and comfort of their seat.
WATER SPRAY SYSTEM
Volvo offers a complete dust suppression solution with a 30 lpm hydraulic lifting pump, which can eliminate the need of a separate truck for pumping water. Four nozzles, two on each side of the arm, provides a fine mist that encapsulates the dust and the system can also be used for cleaning the machine with the high pressure water gun mounted behind the cab.
STABLE UNDERCARRIAGE DESIGNED FOR DEMOLITION
The stable undercarriage designed for demolition has improved working range across all 360° positions, for less repositioning of the machine to maximize production efficiency. For easy operation, the extendable undercarriage allows the operator to effortlessly retract the undercarriage for transportation and expand it for ultimate stability when arriving at the worksite.
ELECTRO HYDRAULIC SYSTEM
The new electro-hydraulic system and new Main Control Valve (MCV) use intelligent technology to control on-demand flow for accurate controllability, high productivity, and excellent fuel economy. The system, boom, arm and swing priority along with boom, arm and bucket regeneration provides optimum performance.
PURPOSE BUILT FOR DEMOLITION
Volvo CE is dedicated to producing the ultimate in heavy-duty demolition machinery. Purpose-built to suit the needs of this demanding task, these high reach excavators are equipped with robust components and a powerful engine to ensure you can keep working shift after shift.
HEAVY-DUTY PROTECTION
Heavy duty protection options give more protection to the machine, keeping it in good condition for longer. A range of durable and robust components and parts can be added for machine longevity and performance.
SERVICE NETWORK
Volvo’s team of experts is always ready to help using local knowledge and global experience. With our extensive infrastructure of technicians, workshops and dealers, Volvo CE has a comprehensive network to fully support you at all times.
ROBUST FRAME, BOOM AND ARM
The robust frame, heavy-duty boom and arm increases reliability and machine uptime, even in severe applications. Steel strips are welded under the arm to further increase protection and various boom and arm configurations are available.
VOLVO D13 TIER 4 FINAL / STAGE IV ENGINE
The latest generation Volvo Tier 4 Final / Stage IV engine fully meets the demands of the latest emissions regulations. Featuring Volvo Advanced Combustion Technology (V-ACT), this engine is designed to deliver superior performance and fuel efficiency. The engine uses precise, high pressure fuel injectors, turbo charger, an air-toair intercooler and electronic engine controls to optimize machine performance.
HIGH VISIBILITY CAB
These high reach excavators are equipped with a Volvo cab that has been designed to offer industryleading levels of comfort. A high visibility cab and carefully placed cameras ensure operators have a clear view of the jobsite at all times, for the ultimate safe, productive working environment.
HANDS ON TILT
The hands-on tilt function, allows the operator to focus on getting the work done, increasing productivity and operator comfort. With buttons on in the joysticks, the operator can easily adjust the angle of the tilting cab, without removing their hands from the joysticks and securing an unobstructed view of the working area.
FRONT-END CAMERA AND MONITOR
Two demolition arm mounted cameras displayed on an 8 inch monitor give a thorough view of the attachment, which helps efficient and safe operation. The operator can toggle between the views of the cameras from the instrument panel.
CONTROLS AND SWITCHES
For ultimate operator comfort, the Volvo cab features ergonomically placed controls and switches for easy operation, as well as a shockabsorbent air suspension seat. Operators are able to view machine operation controls via the newly enlarged 8” LCD monitor, perfectly positioned for high-reach applications.
CLEANING AIR GUN
Volvo now offers a unique optional air compressor system. The air compressor is combined with an air gun, which fitted into the cab for easy access. This is a powerful tool and can be used to clean the cab whenever necessary.

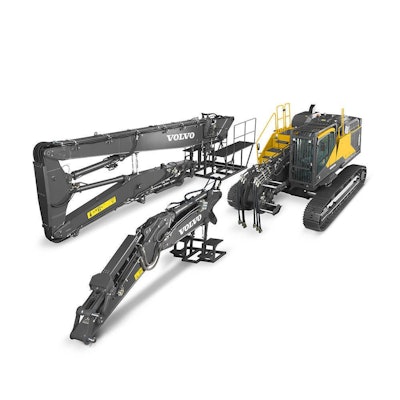

VOLVO PATENTED MODULAR BOOM SYSTEM
These Volvo high reach excavators are a versatile addition to your demolition fleet. Compatible with a wide range of Volvo attachments and built to work both a variety of boom types, these machines are the ideal partner for all demolition projects.
UXILIARY HYDRAULICS AND DEDICATED DRAIN LINES
To achieve the correct flow and superior pressure for hydraulic attachments such as mowers, grinders, shears, crushers and tilt rotators, the machine can be factory fitted with a wide variety of hydraulic lines, using breaker and shear piping as well as rotator piping for an improved working environment.
ATTACHMENTS MANAGEMENT SYSTEM
The attachment management system – controlled through the monitor – stores the settings for up to 20 different hydraulic attachments for ease of operation. Depending on the hydraulic options configured, the management system can store flow, maximum pressure, one or two- way flow, push, toggle and/or proportional control. The system offers password protection, whereby only approved personnel can set up or alter the attachment parameter settings.
STRAIGHT & CONVENTIONAL BOOM
An innovative design makes it easy to change from the Ultra High Reach boom and arm to a standard configuration or a straight boom, so your excavator will stay busy even when you don’t have high-reach projects.
VOLVO QUICK COUPLERS
Volvo offers a full range of quick couplers, including its dedicated S-type coupler, that are perfectly matched to Volvo’s bucket range to ensure high break-out forces at all times. The Volvo universal quick coupler picks up a variety of attachments from various manufacturers. All Volvo quick couplers meet the latest safety regulations.
