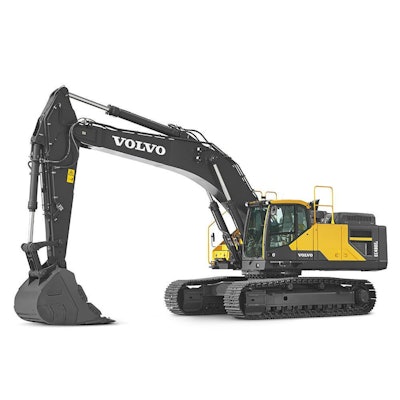

VOLVO EC480E
Introducing the EC480E crawler excavator from Volvo – a powerful and efficient production machine designed to reduce fuel consumption and increase productivity. With advanced technology including Volvo’s unique ECO mode and a new electro-hydraulic control system, the EC480E delivers fuel efficiency improvement.Introducing the EC480E crawler excavator from Volvo – a powerful and efficient production machine designed to reduce fuel consumption and increase productivity. With advanced technology including Volvo’s unique ECO mode and a new electro-hydraulic control system, the EC480E delivers fuel efficiency improvement.
TECHNICAL SPECIFICATIONS FOR EC480E
Here are the key specifications for this product model.
METRIC IMPERIAL
Operating weight 45,500 - 53,300 kg Gross power 278 kW ...at engine speed 1,800 rpm Bucket capacity 1.55 - 3.3 m³ Lifting capacity, along undercarriage 17,590 kg ...at reach / height 6 / 1.5 m Max. digging reach 12,146 mm Max. digging depth 7,828 mm Breakout force, SAE J1179 (Normal) 230 kN Breakout force, SAE J1179 (Boost) 251 kN Tear out force, SAE J1179 (Normal) 196 kN Overall width feet inches 3,640 mm Tear out force, SAE J1179 (Boost) 215 kN Tail swing radius 3,800 mm
HMI
The EC480E has been expertly designed with both the machine owner and operator in mind. With ideally placed controls and switches and a user-friendly LCD monitor and keypad, the task at hand becomes easier and operators will work with increased efficiency – resulting in more productivity.
KEYPAD
The optimally positioned keypad allows the operator to easily navigate through the LCD monitor and activate machine functions in a safe and comfortable way. The functionality of the camera, air conditioning and lights can be customized via the hot key – enabling the operator to select and save desired configurations.
LCD MONITOR
The new, color, eight inch LCD monitor displays machine status information including fuel consumption data and service interval alerts – enabling increased uptime and high productivity. The user-friendly design is easy to read in any light conditions.
SHORTCUT SWITCH
The windshield wipers, camera, audio mute or power max function can be assigned to a shortcut switch located on the joystick. This allows the operator to easily control the selected function by simply pressing a switch.
SEATBELT WARNING ALARM
If the seatbelt is not fastened when the ignition key is turned, a sensor triggers an alarm which sounds for three seconds.
ATTACHMENTS
Maximize your productivity and profitability with the EC480E and Volvo’s durable range of attachments. Increase your versatility, access more applications and effectively perform a variety of tasks – all while experiencing faster cycle times and excellent control. Get the most out of your excavator with Volvo.
BUCKET RANGE
Volvo’s general purpose buckets are the perfect tool for digging and re-handling in soft to medium conditions. Heavy-duty buckets are intended for productive digging in compact materials. Both provide maximum productivity and long life.
OPTIONAL AUXILIARY HYDRAULICS
Factory fitted breaker and shear piping (X1) as well as tilt and rotator piping (X3) increase versatility by enabling a wide range of additional attachments to be used.
S-TYPE QUICK COUPLER
The Volvo S-type quick coupler is designed to work with Volvo attachments – delivering ultimate compatibility and unrivalled performance.
REINFORCED UNDERCARRIAGE
If you’re looking for a strong and reliable excavator to handle tough conditions then look no further than the EC480E. Whether you’re working on a quarry, in mass excavation or any other application, this robust, heavy-duty production machine has the quality and durability you need to work on demanding job sites.
SUPERSTRUCTURE UNDERCOVER
The heavy-duty superstructure undercover plates increase durability by providing additional protection to the underside of the machine in tough applications – preventing damage from rock and debris
DOORS AND HINGES
Volvo’s durable design features a rigid side door with a robust handle and hinges for superior durability.
SINGLE MODULE COOLER
Maintaining and servicing construction equipment is essential in order to sustain maximum performance and productivity – but this shouldn’t be a complicated or time consuming task. With large, wide opening compartment doors and grouped service points, Volvo makes maintenance easy. Increase your uptime with Volvo.
SERVICE ACCESS
Grouped filters are quick and easy to access from ground level. To facilitate fast servicing, grouped greasing points are easily accessed with the machine in one position.
ANTI-SLIP PLATES
Punched anti-slip plates provide superior grip and increased safety. The design facilitates easy cleaning.
STORAGE SPACE
A large storage compartment provides a safe and convenient location for items including a toolbox and grease can.
VOLVO ENGINE
Volvo puts customer needs at the heart of its design process. That’s why the EC480E not only increases productivity with 5% faster cycle times, but also improves fuel efficiency and meets the latest Stage V engine emission legislation. Capitalize on high torque at low rpm and experience superior performance and reduced fuel consumption.
DIESEL-DRIVEN HEATER
The optional diesel-driven coolant heater helps to start the engine in low temperatures while simultaneously heating the cab. The heater can be set in advance to engage at a specific date and time.
VOLVO AFTER TREATMENT SYSTEM
During the fully automatic regeneration process, particulate matter in the Diesel Particulate Filter is oxidized at low exhaust temperatures via passive regeneration. Volvo uses Selective Catalytic Reduction technology where AdBlue®/Diesel Exhaust Fluid is heated to produce ammonia. This causes a chemical reaction which converts NOx to nitrogen and CO2 – both of which are naturally found in the air. Neither process interrupts machine operation, performance or productivity.® = registered trademark of the Verband der Automobilindustrie e.V. (VDA)
COOLING FAN
The hydraulically-driven, electronically controlled cooling fan regulates the temperature of the vital components. It automatically activates only when needed – reducing fuel consumption and noise. The optional reversible functionality – which blows air in the opposite direction – enables self-cleaning of the cooling units.
ECO MODE
Introducing the EC480E crawler excavator from Volvo – a powerful and efficient production machine designed to reduce fuel consumption and increase productivity. With advanced technology including Volvo’s unique ECO mode and a new electro-hydraulic control system, the EC480E delivers fuel efficiency improvement.
ADVANCED HYDRAULICS
The new electro-hydraulic system uses intelligent technology to control on-demand flow and reduce internal losses in the hydraulic circuit. This increases controllability, shortens cycle times and improves fuel efficiency – resulting in higher productivity and performance.
