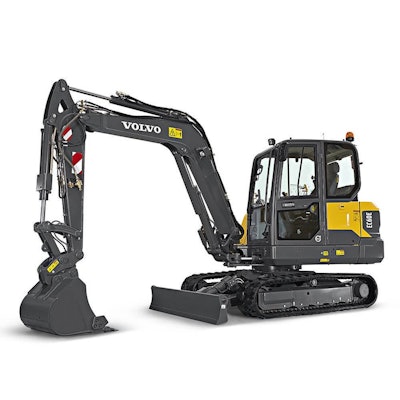

VOLVO EC60E
Work in comfort all day, every day and get more done. The new and improved EC60E crawler excavator features a larger cab design for a comfortable And more productive operator environment.
MORE WORK
Work in comfort all day, every day and get more done. The new and improved EC60E crawler excavator features a larger cab design for a comfortable and more productive operator environment.
TECHNICAL SPECIFICATIONS FOR EC60E
Here are the key specifications for this product model.
METRIC IMPERIAL
Engine Volvo D2.6H Gross power 44.3 kW Net power 42.7 kW ...at engine speed 2,200 rpm Operating weight 5,760 - 7,000 kg Bucket capacity 0.07 - 0.27 m³ Travel speed, low / high 2.3 / 4.4 km/h Slewing speed 9.5 rpm Breakout force 43.3 kN Tear out force (arm breakout force) 28.8 kN Overall width 1,920 mm Overall length 5,800 mm Main hydraulic pump max. flow 60.5 l/min Boom swing angle, left / right 70 / 60 degree
LARGER CAB
The new and improved EC60E features a larger cab design for a comfortable and more productive operator environment. Improved ergonomics and a modern LCD display give you perfect control in all operations. Plenty of storage has been added for personal belongings.
OPERATOR CONVENIENCE
Increased storage space is available for operator comfort and convenience. A phone tray, two power sockets, cup holder and three other large storage areas makes the Volvo cab a more convenient working environment.
OPERATOR VISIBILITY
All-round visibility is improved by thinner pillars, larger glazed area and enlarged wiper blade. The rear view camera secures a better view for perfect and safe control through the 7” color LCD display. This ensures there are no blind spots even in the most confined working areas.
WORK IN COMFORT
The comfortable and adjustable seat makes it easier for the operator to work hard all day and feel less tired by the end of it. The cab’s air conditioning is 10% more efficient and in automatic mode, the temperature remains at a set level. Six adjustable vents allow for optimal airflow in the cab.
EASE OF CONTROL
Control your machine with minimal effort in order to get more done in less time. The keypad groups all controls on the right hand side and the 7” color LCD screen displays all machine information for access to functions through its easy to use menus. Through the hot keys, the operator can directly access pre-set functions for added convenience. The new and improved proportional joy stick provides better grip, fits your thumb perfectly and increases ease of control.
BOOSTED PERFORMANCE
Climb quicker, swing smoother, dig harder and load faster with the EC60E. Improved traction, swing force and lifting capacity gets you results, fast. This versatile and powerful machine can be tailored for any job and is suitable for a wide range of applications.
POWERFUL VOLVO STAGE V ENGINE
Give your job site a boost and achieve fast results. Increased power to 44.3kW and improved cooling ensure optimized performance in any climate. For the ultimate combination of power and performance, the engine helps to push through challenging conditions.
SMOOTH OPERATION
For increased controllability, productivity and a comfortable operating experience you can dig, swing, load and lift for smooth combined operation. With responsive controls the machine does exactly what the operator intends for less fatigue and fluent movement.
VERSATILITY
Perform on any job site, whether you’re working in a confined space or major construction area. The machine’s compact design, long arm, optional fixed boom and offset boom, longer dozer blade, auxiliary hydraulic and thumb pipings makes the machine suitable for a wide range of jobs and applications.
OPERATOR PERFORMANCE
The operator can set the machine to their own style and to suit the job at hand for easier control and increased performance. The auxiliary hydraulic flows, electric dozer blade and boom offset speed can be adjusted by the operator and tailored to three different work response modes –‘Active’, ‘Normal’ or ‘Soft’.
SERVICEABILITY
The EC60E is designed and built to increase your profitability and keep you working for longer. To reduce your running costs it features excellent service access, convenient maintenance points and Volvo’s auto engine shutdown feature. With better fuel efficiency than the previous machine series, this durable and reliable machine secures your costs and increases your uptime.
LOW FUEL CONSUMPTION
The new Volvo engine and improved hydraulics together offer superior fuel efficiency. The standard auto idle feature helps to reduce your fuel consumption even further and increase your profits.
MATRIS AND VCADS PRO
By working with your dealer and using Volvo MATRIS software you can analyse operator behaviour to improve efficiency, boost productivity and reduce your fuel and maintenance costs. Volvo also offers the VCADS Pro diagnostic system, making it easy to control your machine.
ATTACHMENT VERSATILITY
Volvo offers a wide range of durable attachments that are suitable for any job site, including utilities, building, agriculture, landscaping and forestry. Volvo attachments are an integrated part of the excavator for which they’re intended –delivering maximum productivity and versatility.
CUSTOMER SUPPORT AGREEMENTS
Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to increasing the positive return on your investment and maximising uptime.
